Peripheral Embolization
System

Designed for Immediate and Long-Term Mechanical Occlusion

Illustration of Embolization coils within vessels of the body

The Penumbra Peripheral Embolization System relies on mechanical occlusions designed for immediate and long-term occlusions. The Penumbra Peripheral Embolization System consists of large volume platinum-based bare metal coils designed for delivery through low profile and high-flow microcatheters for arterial and venous embolization within the peripheral vasculature.

  • Consisting of Ruby® Coil, POD®, Packing Coil, LANTERN® High-Flow Microcatheter, and Low Profile (LP) System, this system works in conjunction to help facilitate simplified and efficient embolization procedures.

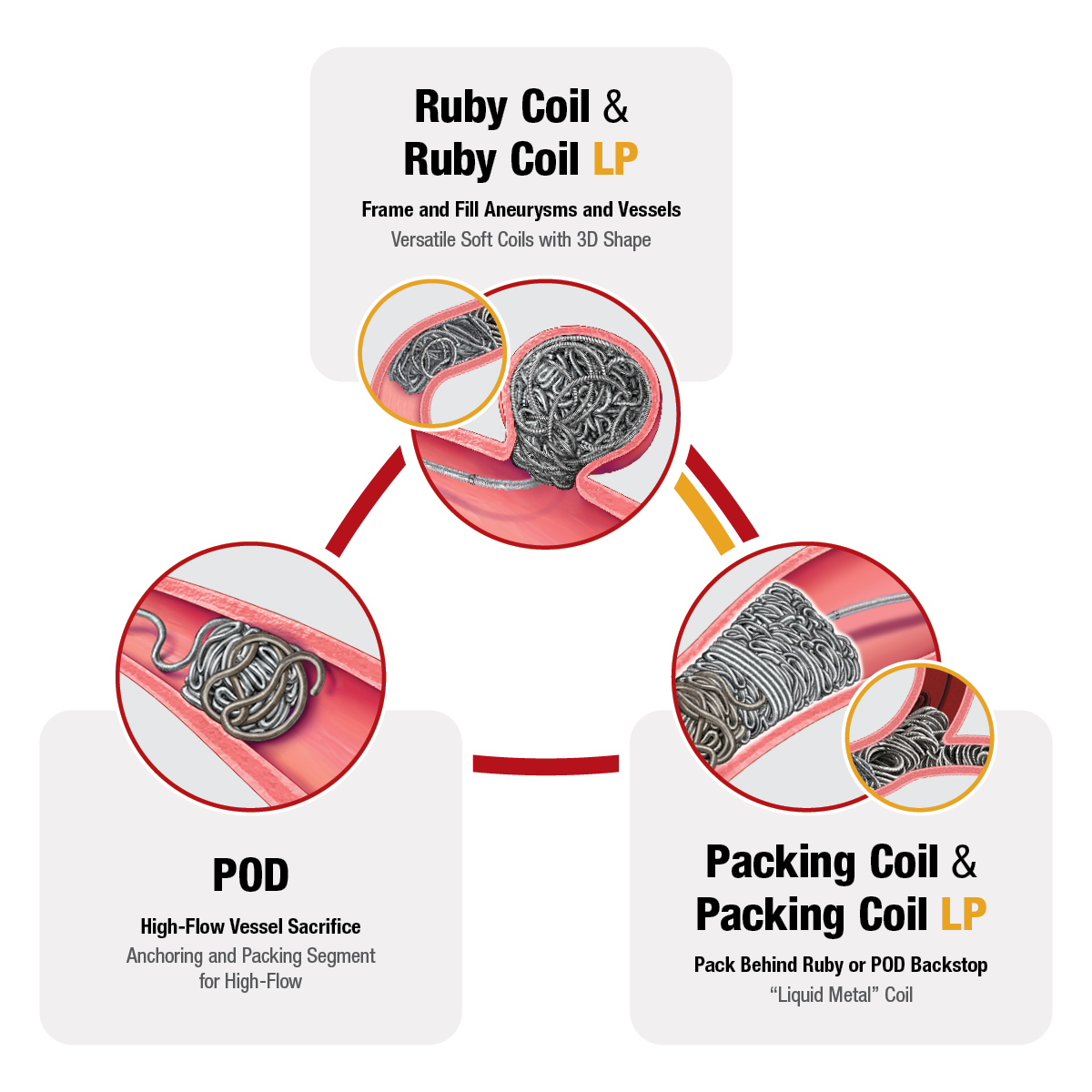

    Graphic displaying Embolisation system products, uses, and sizes (dimensions below) in a triangle formation with text "Ruby Coil - Frame and Fill Aneurysms and Vessels - Versatile Soft Coils with 3D Shapes" , "POD - High-flow vessel sacrifice - Anchoring and Packing Segment for High-Flow" "Packing Coil - Pack Behind Ruby or POD Backstop - Liquid Metal Coil"

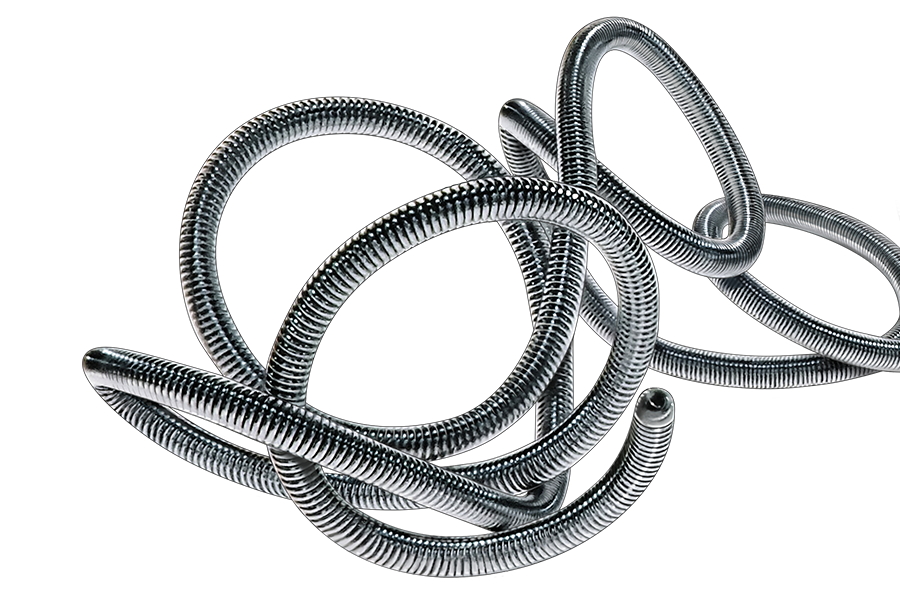

    Ruby Coil & Ruby Coil LP

    • Frame and Fill Aneurysms and Vessels
    • Versatile Soft Coils with 3D Shape
    • Large Volume System: 2 mm × 1 cm – 40 mm × 60 cm
    • Low Profile System: 1 mm × 2 cm – 10 mm × 70 cm

    Packing Coil & Packing Coil LP

    • Pack Behind Ruby or POD Backstop
    • “Liquid Metal” Coil
    • Large Volume System: 5 – 60 cm Lengths
    • Low Profile System: 3 – 60 cm Lengths

    POD

    • High-Flow Vessel Sacrifice
    • Anchoring & Packing Segment for High-flow
    • Large Volume System: 3 – 14 mm Devices

    Renderings are for illustrative purposes only.

    Individual results may vary depending on patient-specific attributes and other factors.

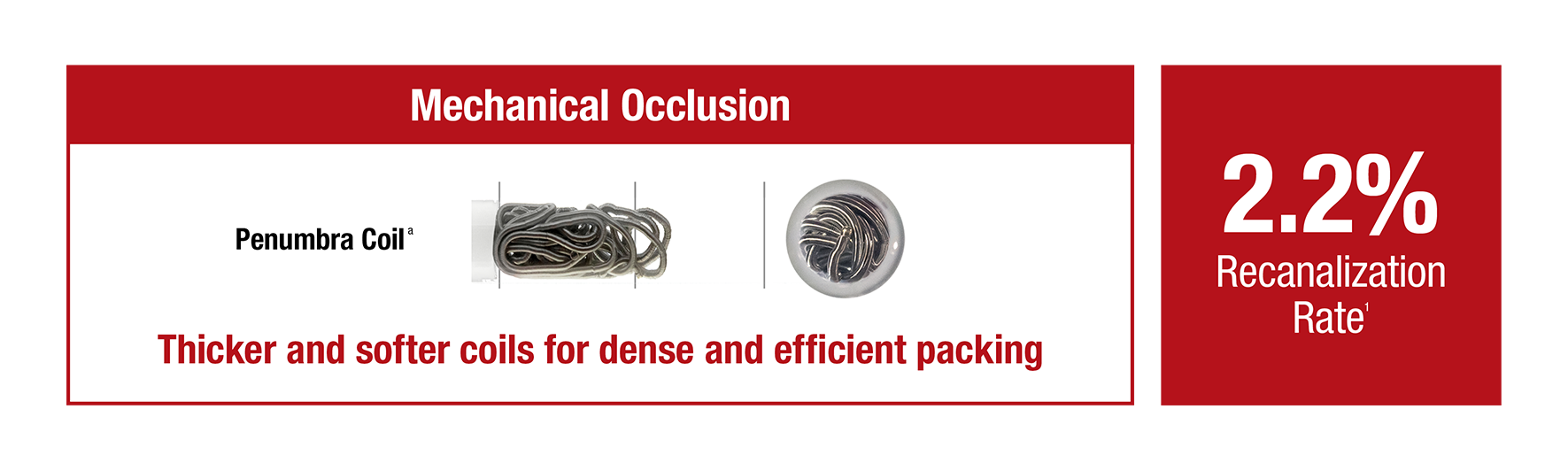

  • Mechanical Occlusion showcasing recanalization rate (details below) with text "Thicker and softer coils for dense and efficient packing"

    Penumbra coilsa are designed to be thicker and softer to densely pack, creating a mechanical occlusion with the potential for less reliance on thrombus formation. Penumbra coils have shown low rates of recanalization of 2.2%1

    a. 30 cm Packing Coil delivered through Penumbra LANTERN High-Flow Microcatheter into 4 mm glass tube.

    1. Vogler J, Gemender M, Samoilov D. Packing density and long-term occlusion after transcatheter vessel embolization with soft, bare-platinum detachable coils. Am J Interv Radiol. 2020;4(2). doi:10.25259/AJIR_31_2019.

    Photographs taken by and on file at Penumbra, Inc. Tests performed at Penumbra, Inc. Bench test results may not be indicative of clinical performance. The clinical results presented herein are for information purposes only, and may not be predictive for all patients. Individual results may vary depending on patient-specific attributes and other factors.

  • Graphic Describing the length and thickness of the Peripheral Embolization System with text "Penumbra Coil Technology" (Details Below)

    Penumbra’s embolization systems have the largest and longest coils availableb

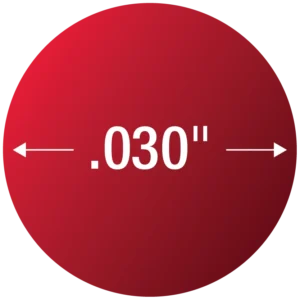

    • Large Volume System
      • .025″+ Microcatheter Compatibility

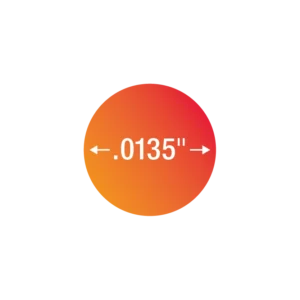

    • LP System
      • .0165″–.021″ Microcatheter Compatibility

    b. As of November 2023.

    Renderings for illustrative purposes only.

Long Term Occlusion Data on Ruby Coils

Embolization System Coil Reference Guide

MRI Compatibility
