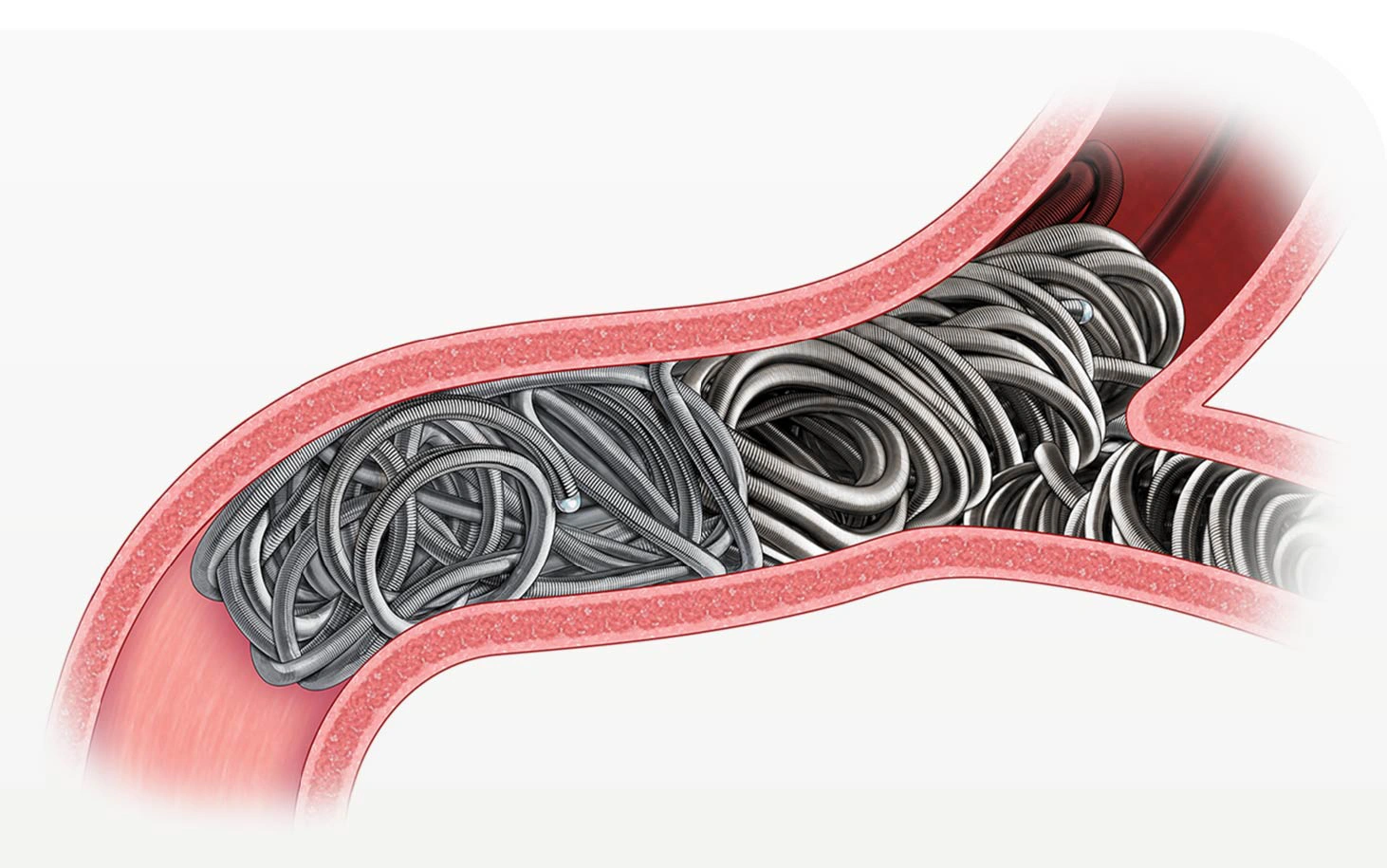

The LP System is part of the Ruby® Embolization Platform. At .0135″, it offers a low profile solution designed for precise embolization in small vessels and aneurysms. It is indicated for arterial and venous embolization in the peripheral vasculature.

    • A primary diameter of .0135″
    • Available in Ruby Coil LP and Packing Coil LP configurations
    • Compatible with .0165″+ ID microcatheters
    • Available in diameters as small as 1 mm and lengths up to 70 cm
    • True mechanical occlusion technology — no fibers or hydrogel
    • Soft, shape-conforming coils designed to fill and occlude small-caliber vessels

    Diagram of illustration explaining the LP Embolization System sizes, dimensions, and usage (information found below) with text "Ruby Coil LP - Initial coil in small vessels - Available in sizes as small as 1 mm in diameter" and "Packing Coil LP - Space filling liquid metal coil - designed to conform to vessel diameter"

    Renderings for illustrative purposes only. Individual results may vary depending on patient-specific attributes and other factors.

    • Compatible with .0165″+ low profile microcatheters
    "LP System" Text on Transparent Background "020 System" Text on Transparent Background "XL System" Text on Transparent Background
    Ruby Coil LP
    Packing Coil LP    		 Ruby Coil
    POD®
    Packing Coil    		 Ruby Coil XL
    POD XL
    Packing Coil XL
    Diameter .0135" on Orange Circle Diameter .020" on Red Circle Diameter .030" on Red Circle
    .0165″+
    Low Profile
    Microcatheter Compatible    		 .025″+
    High-Flow
    Microcatheter Compatible    		 .035″+
    Diagnostic
    Catheter Compatible

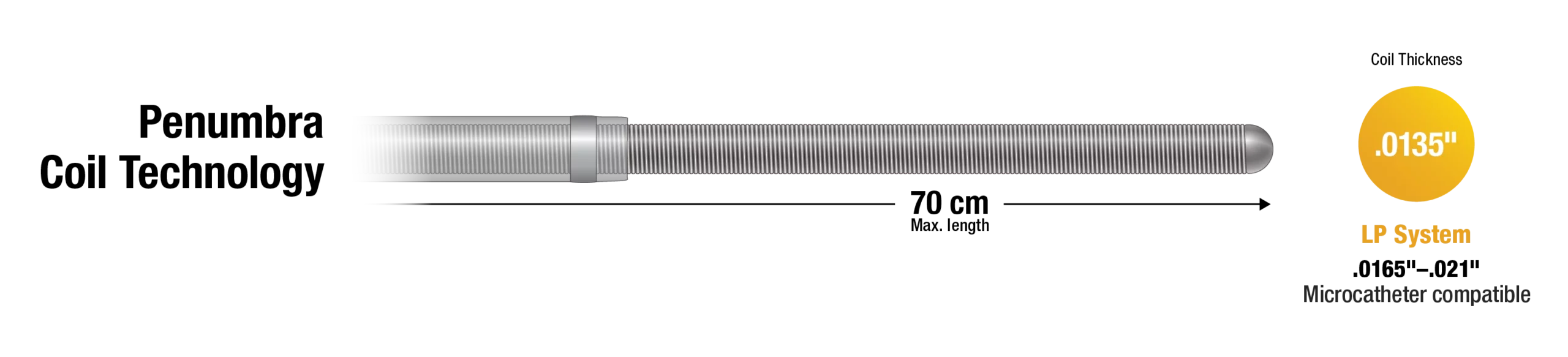

  • Graphic Describing the length and thickness of the LP System (information found below) and text "Penumbra Coil Technology"

    • Ruby Coil LP
      • Designed to frame and fill small vessels and aneurysms (1–10 mm)
    • Packing Coil LP
      • Designed to conform dynamically to any small vessel anatomy (available in 3–60 cm lengths)

    Renderings for illustrative purposes only.

Embolization System Coil Reference Guide

Learn More

MRI Compatibility

Learn More

Related Cases

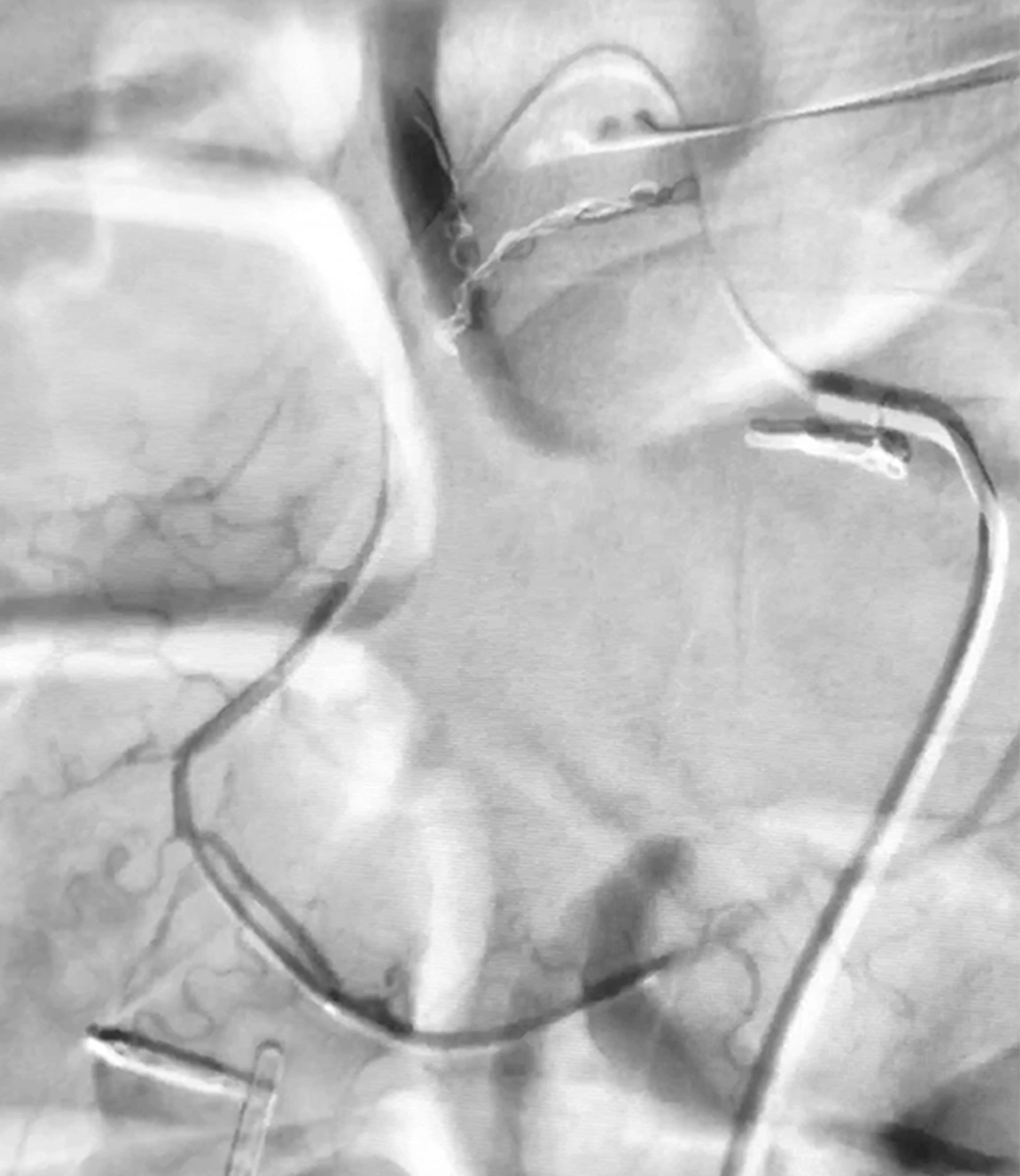

Angiogram of gastroduodenal artery prior to embolization

Pre & Post

Angiogram of occluded GDA with LP Coils

Pre & Post

GDA
Embolization

Coils used:​
Ruby Coil LP​, Packing Coil LP

Dr. Brian Montague
St. Joseph’s Hospital, FL

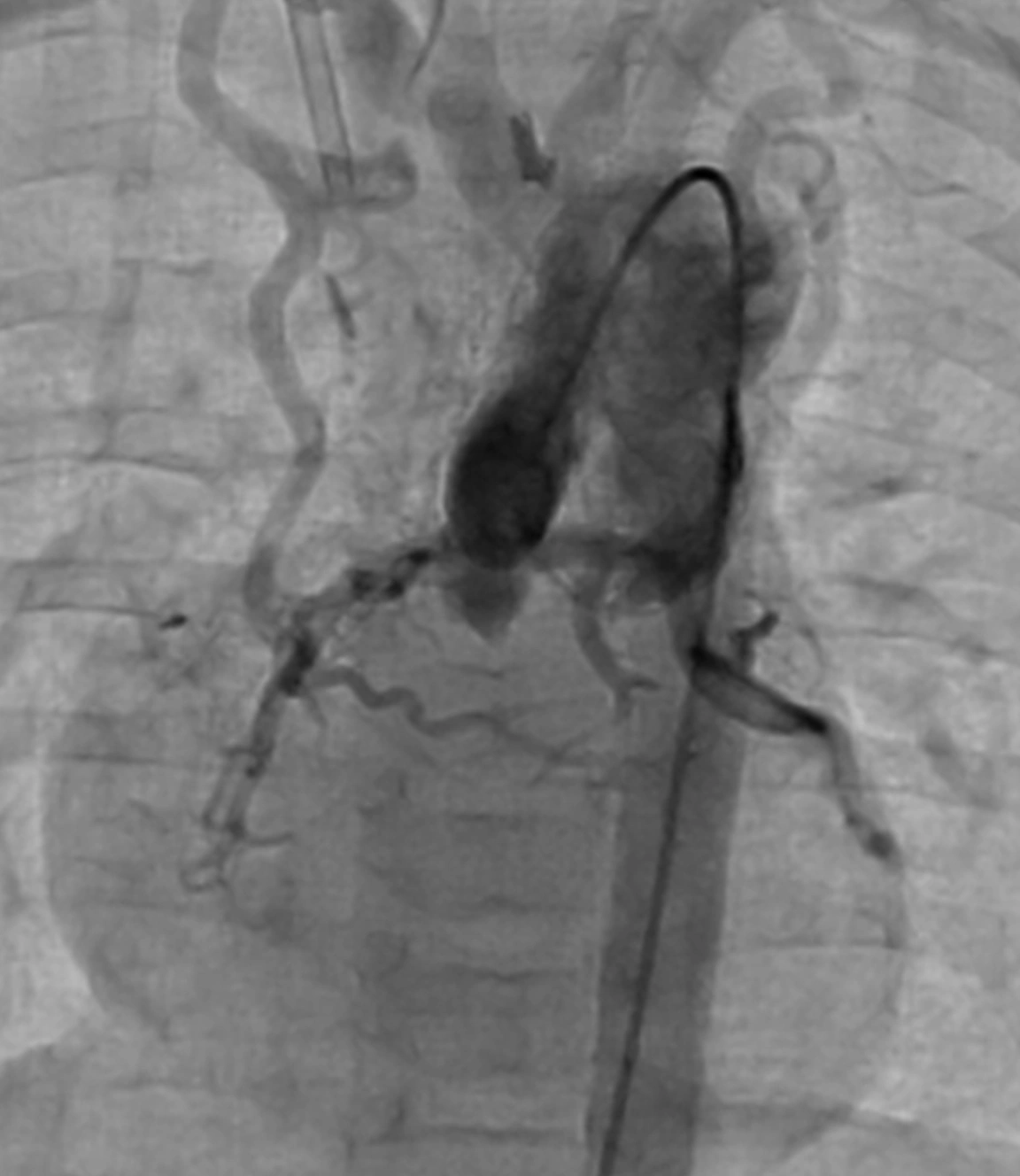

Angiogram of aortopulmonary collaterals

Pre & Post

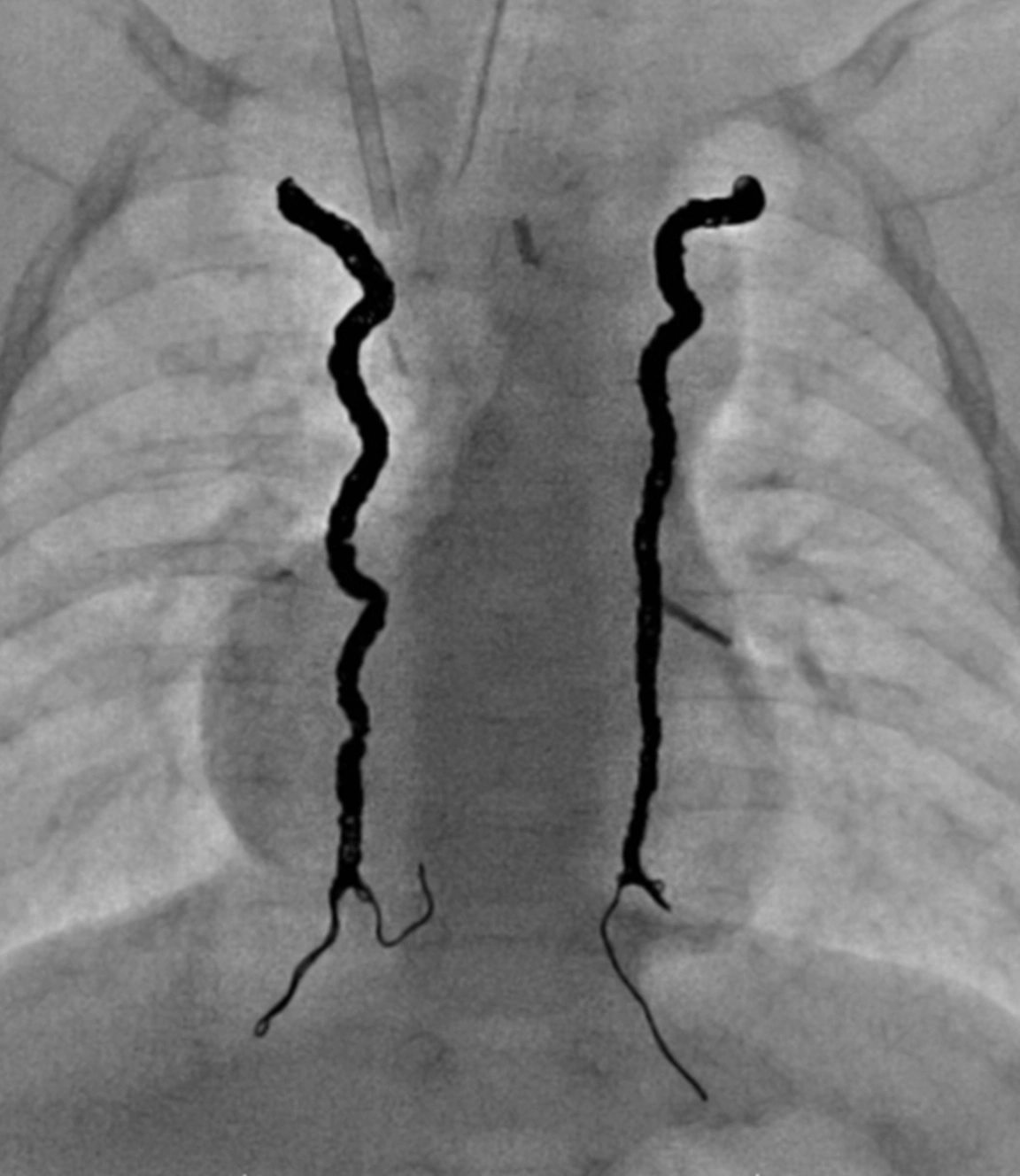

Angiogram of occluded aortopulmonary collaterals with LP coils

Pre & Post

Aortopulmonary Collateral Embolization

Coils used:​
Ruby Coil LP​, Packing Coil LP​

Dr. Howaida El-Said
Rady Children’s Hospital, CA

Images used with permission and provided for illustrative purposes only. Procedural techniques and decisions based on physician’s medical judgment. Individual results may vary. Consents on file at Penumbra, Inc.
