BENCHMARK BMX96 Access System
The BENCHMARK™ BMX®96 Access System is designed for today’s most complex neurovascular interventions. The advanced stainless steel hypotube technology of BENCHMARK BMX96 provides distal deliverability and proximal stability for most complex therapies. Furthermore, the catheter’s .096″ (2.44 mm) lumen is designed to increase procedural versatility and intraprocedural visualization.
Prepackaged options with Penumbra 6 F (2.4 mm) Select™ Catheter enables Rapid Primary Access into final position, eliminating the need for an over-the-wire exchange.
BENCHMARK BMX96 Access System
- 8 F OD (2.77 mm) delivery catheter
- .096″ (2.44 mm) ID designed to expand procedural versatility and intraprocedural visualization
- Soft, atraumatic tip design for distal placement
- Mechanically optimized proximal shaft designed to maximize procedural stability
- Prepackaged options with Penumbra 6 F (2.21 mm) Select Catheter for Rapid Primary Access
- Packaged with a radiopaque dilator designed to provide seamless dilator-to-catheter transition (.038″ guidewire compatible)
- Tip Shapes: Straight, MP
- Lengths Include: 80 cm, 90 cm, 100 cm
6 F Select Catheters
- Allows for easy selection off arch into desired vessel
- Designed to deliver BENCHMARK BMX96
- Low-profile, tapered 5 F distal segment
- Designed to facilitate atraumatic placement into distal vasculature
- Can be used for diagnostic angiogram – .040″ (1.02 mm) lumen
- Compatible with all .035″—.038″ (.89 mm—.97 mm) guidewires
- Tip Shapes: SIM-V, SIM, BER, H1
- Lengths Include: 105 cm, 125 cm
Product Gallery

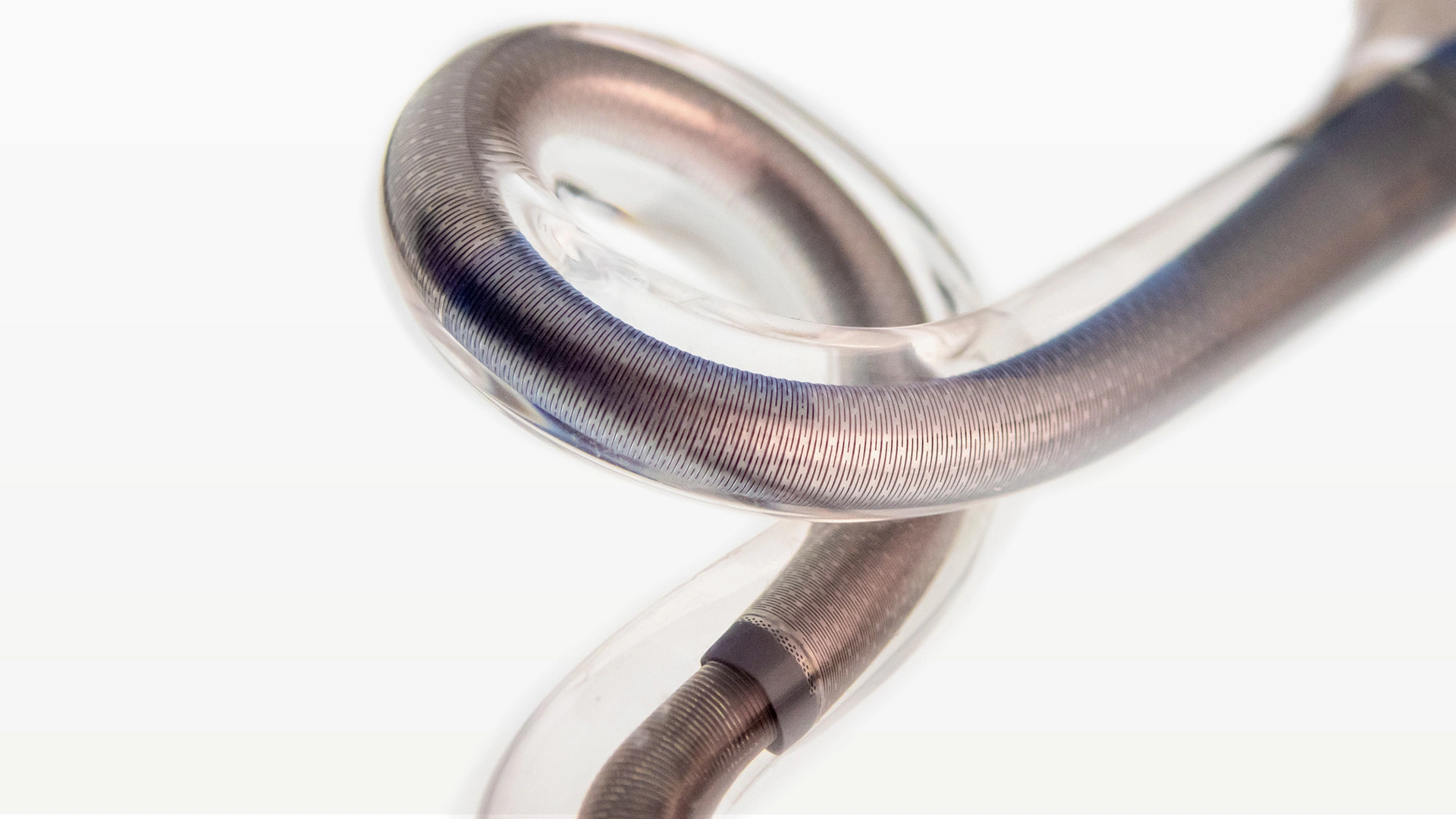

– BENCHMARK BMX96
– BENCHMARK BMX96 Seamless Dilator Transition

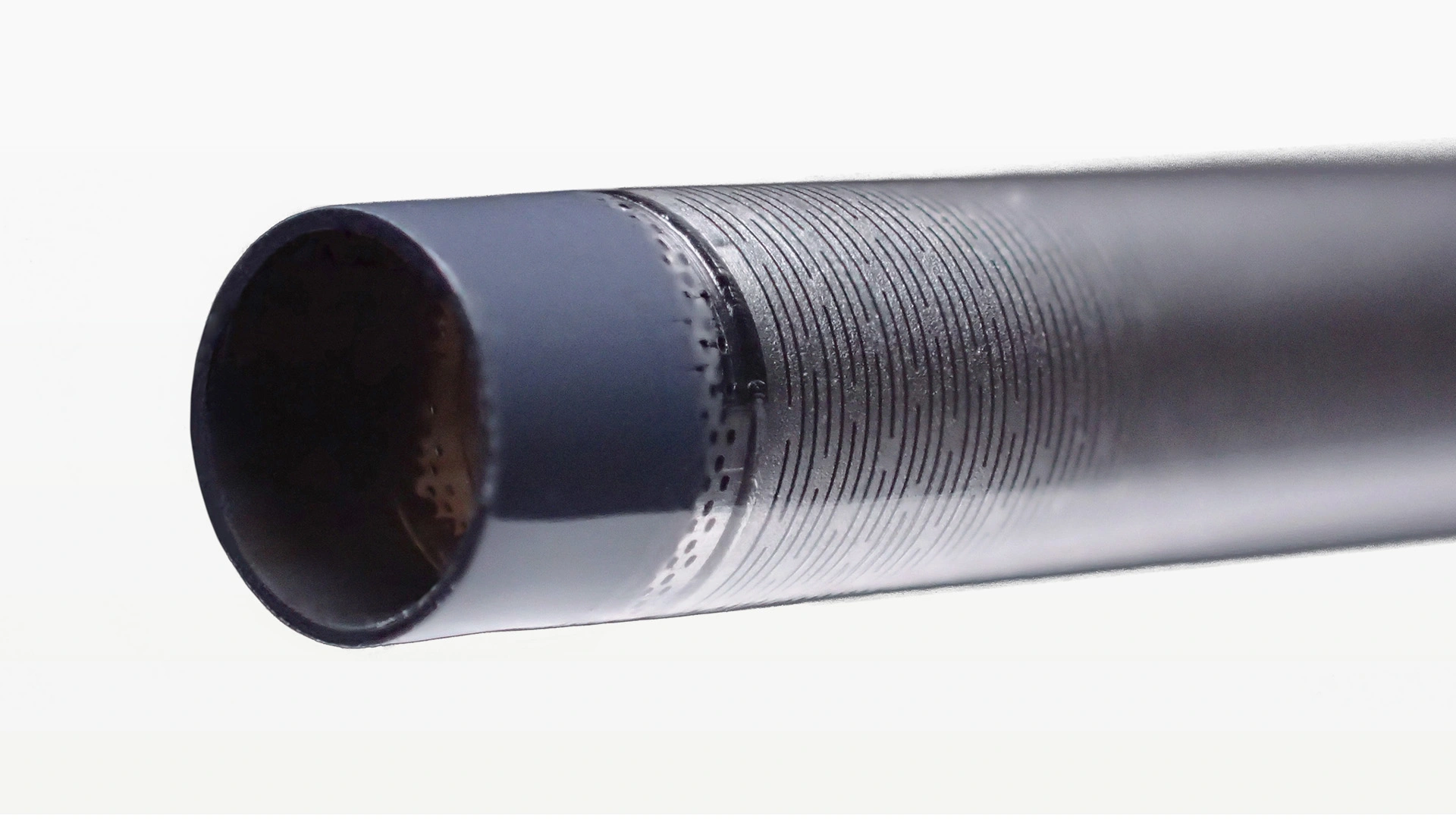

– BENCHMARK BMX96 Distal Tip

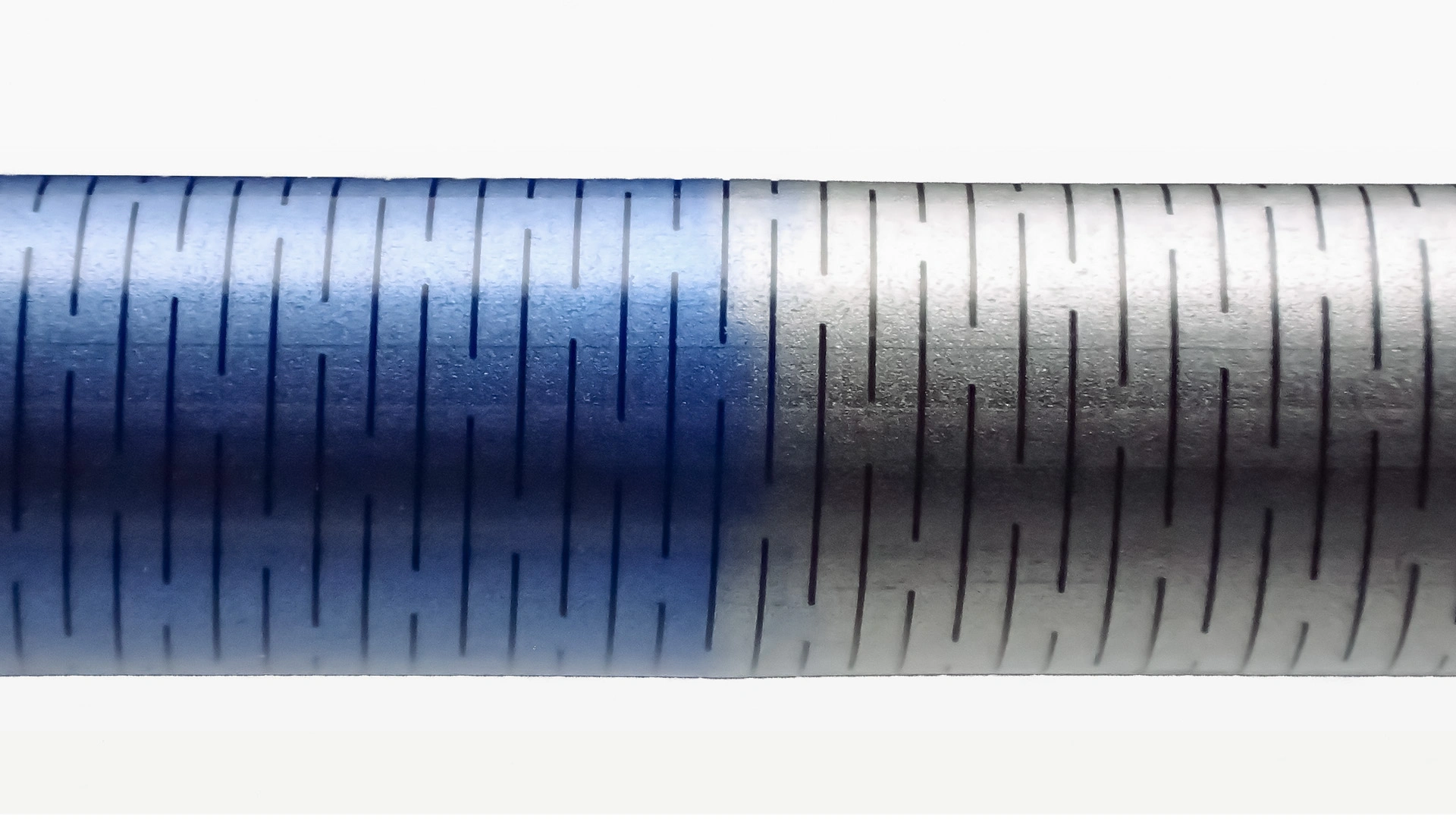

– BENCHMARK BMX96 Laser-Cut Hypotube
Please refer to Penumbra’s image license for use of materials
Related Cases
Flow Diverter Embolization
Contrast injection through BENCHMARK BMX96 and BMX96 Tracking for Flow Diverter Embolization.
Dr. Ryan Viets
Scripps Memorial Hospital La Jolla, CA
Carotid Stenting
BENCHMARK BMX96 Supporting Delivery of Two Balloons and a Tapered Carotid Stent.
Dr. Robert Starke
Jackson Memorial Hospital, FL
Images used with permission and provided for illustrative purposes only. Procedural techniques and decisions based on physician’s medical judgment. Individual results may vary. Consents on file at Penumbra, Inc.
