BENCHMARK BMX81 Access System

Contact Us
⚠️ Indications, Safety, and Warnings

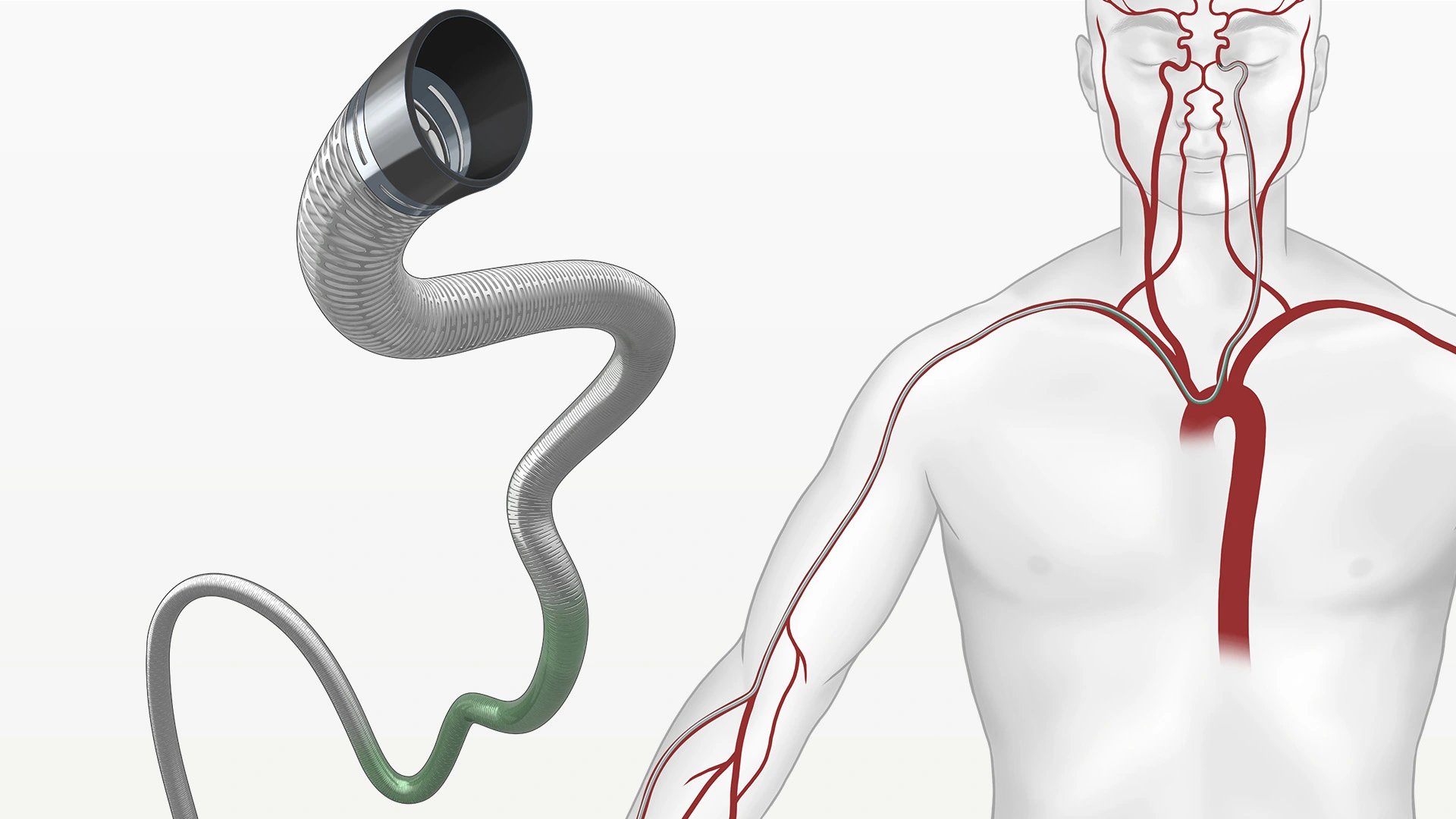

Illustration of Benchmark BMX 81 Access System with open tip used for neurovascular access

The BENCHMARK™ BMX®81 Access System is designed for today’s most complex neurovascular interventions. It is a 7 F (2.46 mm) guide for both femoral and radial access. The advanced stainless steel hypotube technology of BENCHMARK BMX81 provides distal deliverability and proximal stability for most complex therapies. Furthermore, the catheter’s .081″ (2.06 mm) lumen is designed to expand intraprocedural options and compatibility.

Compatible with Penumbra 5 F (1.73 mm) Select™ Catheter, designed for Rapid Primary Access to optimize delivery to final position, eliminating an over-the-wire exchange.

    • 7 F OD (2.46 mm) delivery catheter
    • .081″ ID (2.06 mm) designed to expand intraprocedural options and compatibility compared to 6 F Guide Catheters
    • Soft, atraumatic tip design for distal placement

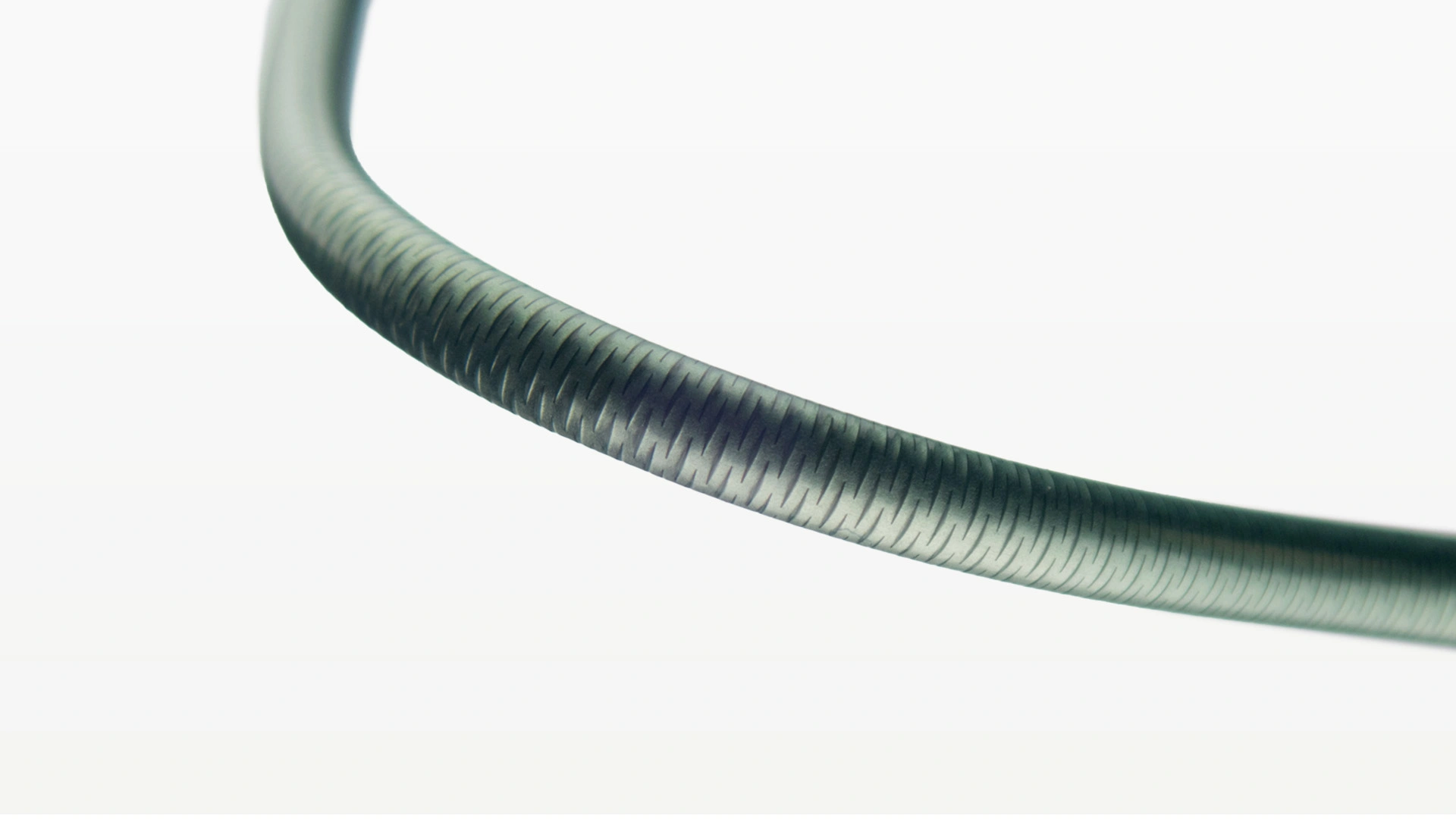

    • Mechanically optimized proximal shaft designed to maximize procedural stability
    • Compatible with Penumbra 5 F (1.73 mm) Select Catheter, designed for Rapid Primary Access to optimize delivery to final position, eliminating an over-the-wire exchange

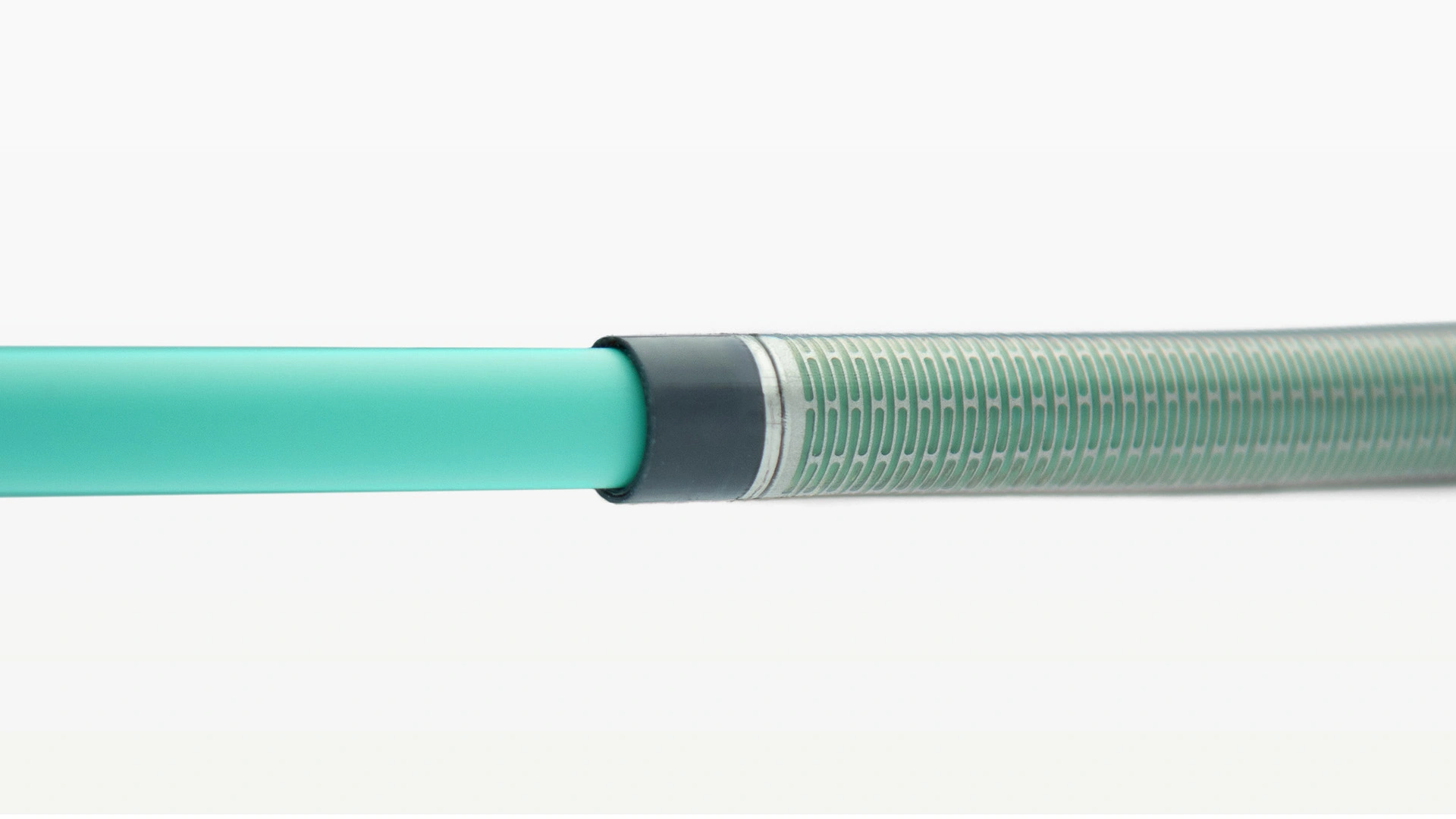

    • Packaged with a radiopaque dilator designed to provide seamless dilator-to-catheter transition (.038″ guidewire compatible)
    • Tip Shapes: Straight, MP
    • Lengths Include: 95 cm, 105 cm, 115 cm

Related Cases

Angiogram of BMX 81 placed in the common carotid artery prior to stent placement

Pre, Post, & BMX81 Tracking

Angiogram of BMX 81 in the common carotid artery post stent placement

Pre, Post, & BMX81 Tracking

Angiogram of BMX 81 tracking into the common carotid artery

Pre, Post, & BMX81 Tracking

Right carotid artery

Carotid Stenting​

Transradial Access (direct stick)​

Dr. Jeff Beecher
New Hanover Regional Medical Center, NC

Angiogram of BMX 81 tracking over a 5 F Select Catheter into the horizontal petrous segment

Pre, Post, Coiling

Angiogram of BMX 81 placed into the horizontal petrous segment

Pre, Post, Coiling

Animated Angiogram of delivery of PC400 into an aneurysm with a balloon inflated

Pre, Post, Coiling

Animated imaging of PC400 being delivered into an aneurysm

Pre, Post, Coiling

5 mm ICA Aneurysm

Balloon-Coiling

Transfemoral Access ​

Dr. Richard Bellon
Swedish Medical Center, CO

Images used with permission and provided for illustrative purposes only. Procedural techniques and decisions based on physician’s medical judgment. Individual results may vary. Consents on file at Penumbra, Inc.
