Tumor Embolization

Neuro Embolization

Tumor Embolization

SwiftSET Coil
Dr. Robert Starke
University of Miami Health System, FL
SwiftPAC embolization coil in a flow model

Large sinonasal tumor supplied by bilateral internal maxillary and right ascending pharyngeal arteries. Bilateral carotids + vertebrals angiogram
followed by selective bilateral IMA and right ascending pharyngeal embolization using 350–500 µm particles and Swift coils.
Access Set-Up: BENCHMARK071 95 cm, ACCESS25 Delivery Microcatheter, Terumo Neuro Headway DUO 156 cm. Devascularization was achieved before surgery without reflux or nontarget
embolization.
Coil sequence: POD400 3 mm √ó 20 cm, (3) PAC400 60 cm, PAC400 40 cm, SwiftSET Coil 1 mm √ó 5 cm, (2) SwiftPAC Coils 3 cm‚Äã

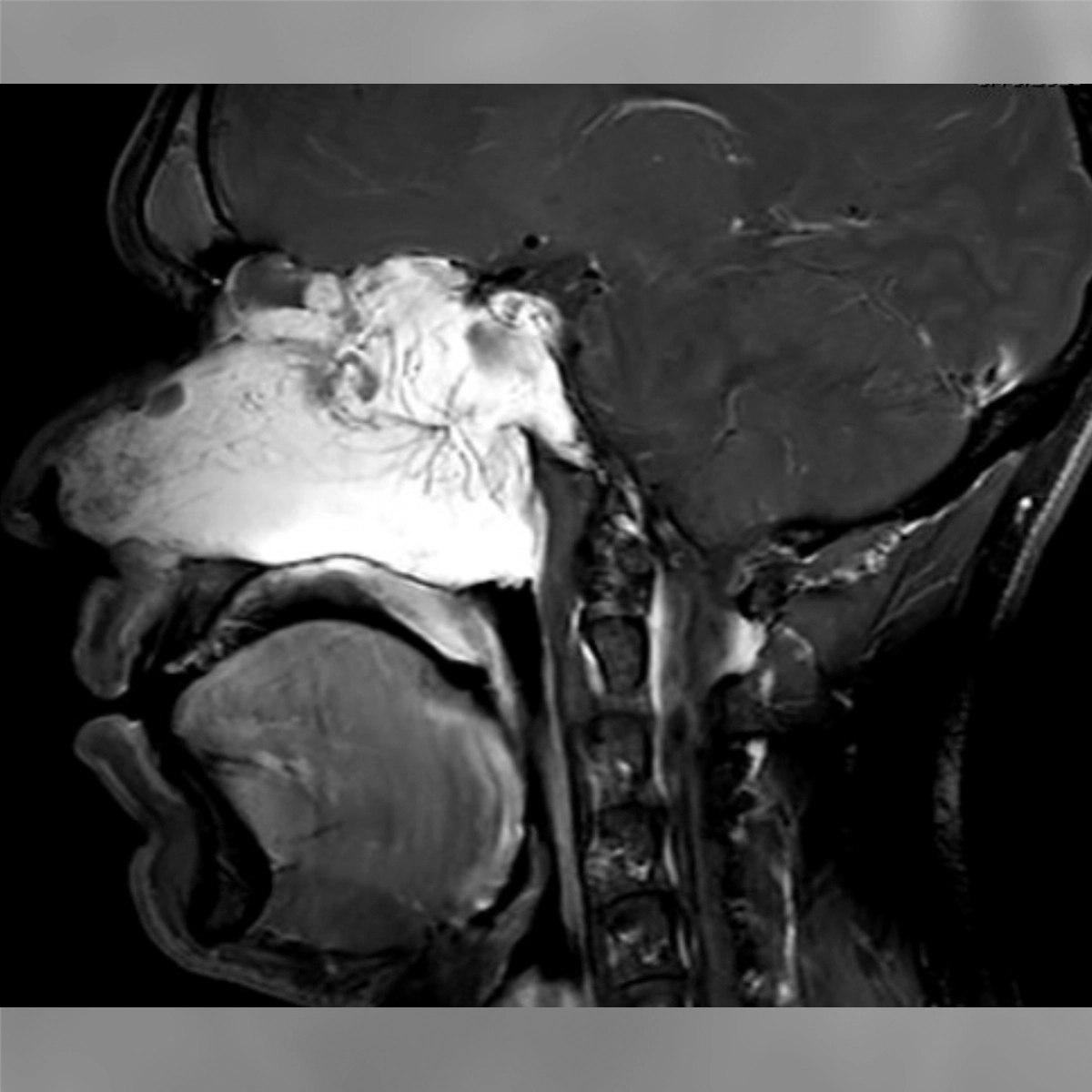

  • Sagittal MRI of the head showing a prominent mass at the skull base extending forward into the nasal and sinus area.

    Pre

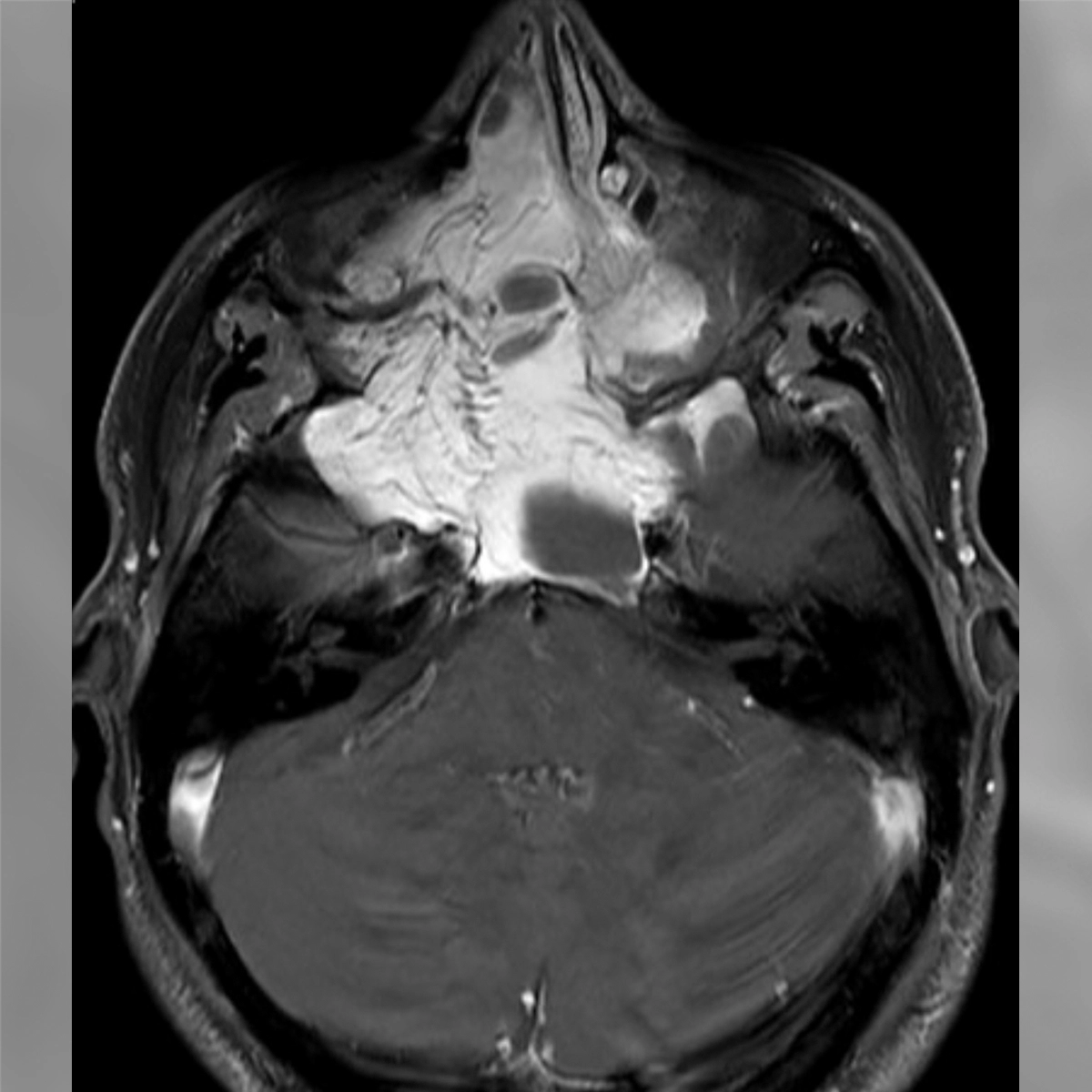

  • Axial MRI of the head showing a bright, irregular mass occupying the central skull base region above the nasal cavity

    Pre

  • Coronal MRI of the head showing a large, bright mass centered at the skull base extending into surrounding sinus structures

    Pre

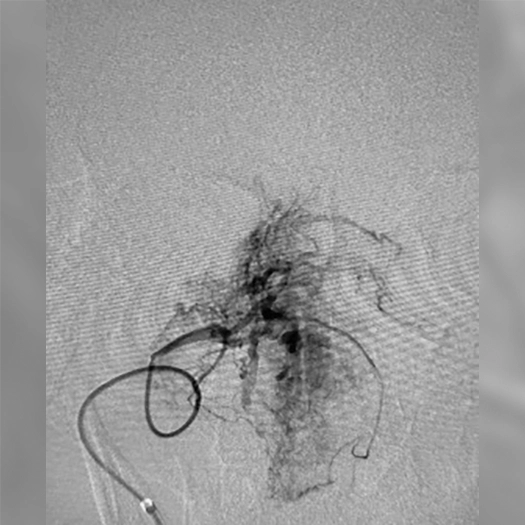

  • angiogram showing a catheter positioned near a dense cluster of vessels at the skull base with contrast highlighting the vascular structure

    Pre

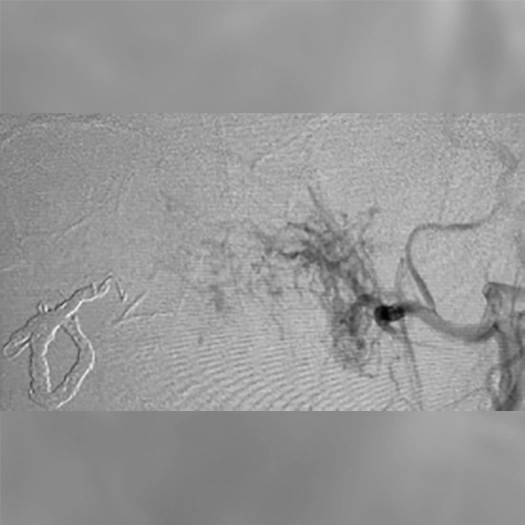

  • angiogram showing contrast filling a central vascular region with a dense network of vessels extending from a primary arterial source

    Post

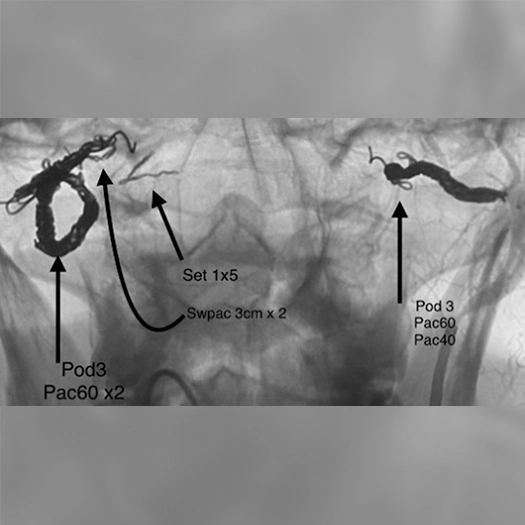

  • angiogram of the skull base with embolization devices in place, showing coils and embolic material with arrows and labels indicating device types and positions

    Post

Images used with permission and provided for illustrative purposes only. Procedural techniques and decisions based on physician’s medical judgment. Individual results may vary. Consents on file at Penumbra, Inc.
