The Penumbra Coil 400™ (PC400™) is a .020″ primary diameter coil. PC400 is designed to enable higher packing densities using fewer coils, leading to potential efficiencies in procedure duration, time under fluoroscopy, and treatment cost.a
-
- .020″ primary diameter coil designed to provide a volume advantage over 10-system coils
- 40% reduction in procedure durationa
- 32% reduction in fluoroscopy timea
- 36% reduction in treatment cost compared to 10-system coilsa
- Offering includes multiple shapes and softness levels:
- Complex Standard
- Complex Soft
- Complex Extra Soft
- Curve Extra Soft
- Sizes range from 2–32 mm in diameter and 1–60 cm in length
- Deployment optimized through ACCESS25™ Delivery Microcatheter design (.025″ ID)
- Ultra HD Fiber for stretch resistance
- 3× stronger and more flexible than conventional polypropylene b
- Instant mechanical detachment
- Deliverable through .025″ – .027″ microcatheters
- Single disposable handle packaged separately
a. Berge J, Gariel, F, Marnat G, Dousset V. PC400 volumetric coils minimize radiation, reduce procedure time and optimize packing density during endovascular treatment in medium sized cerebral aneurysms. J Neuroradiol. 2016 Feb;43(1):37-42. Doi:10.1016/jneurad.2015.10.002.
b. Tests performed and data on file at Penumbra, Inc. Bench test results may not be indicative of clinical performance.
- .020″ primary diameter coil designed to provide a volume advantage over 10-system coils
MRI Compatibility

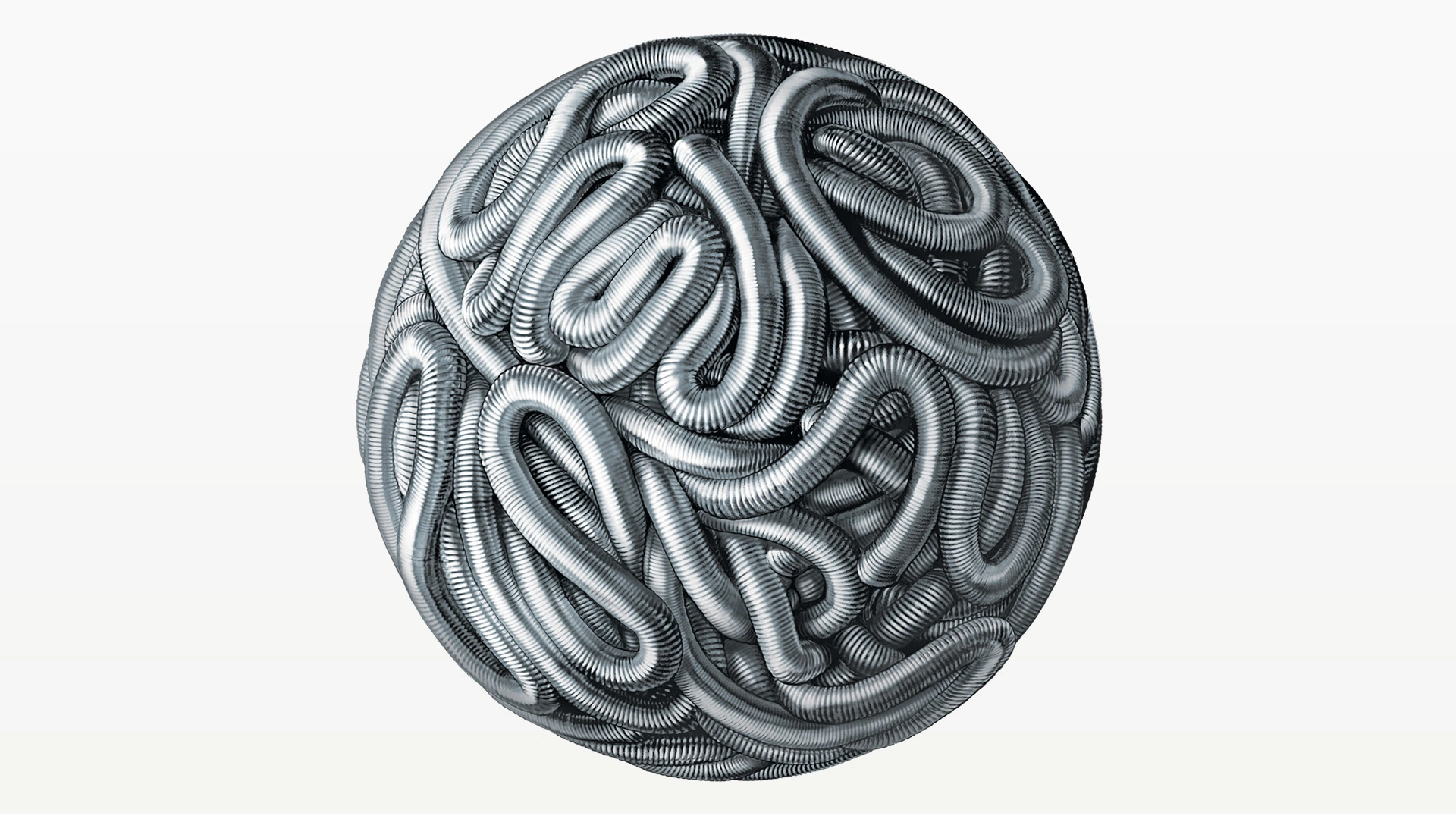

Product Gallery

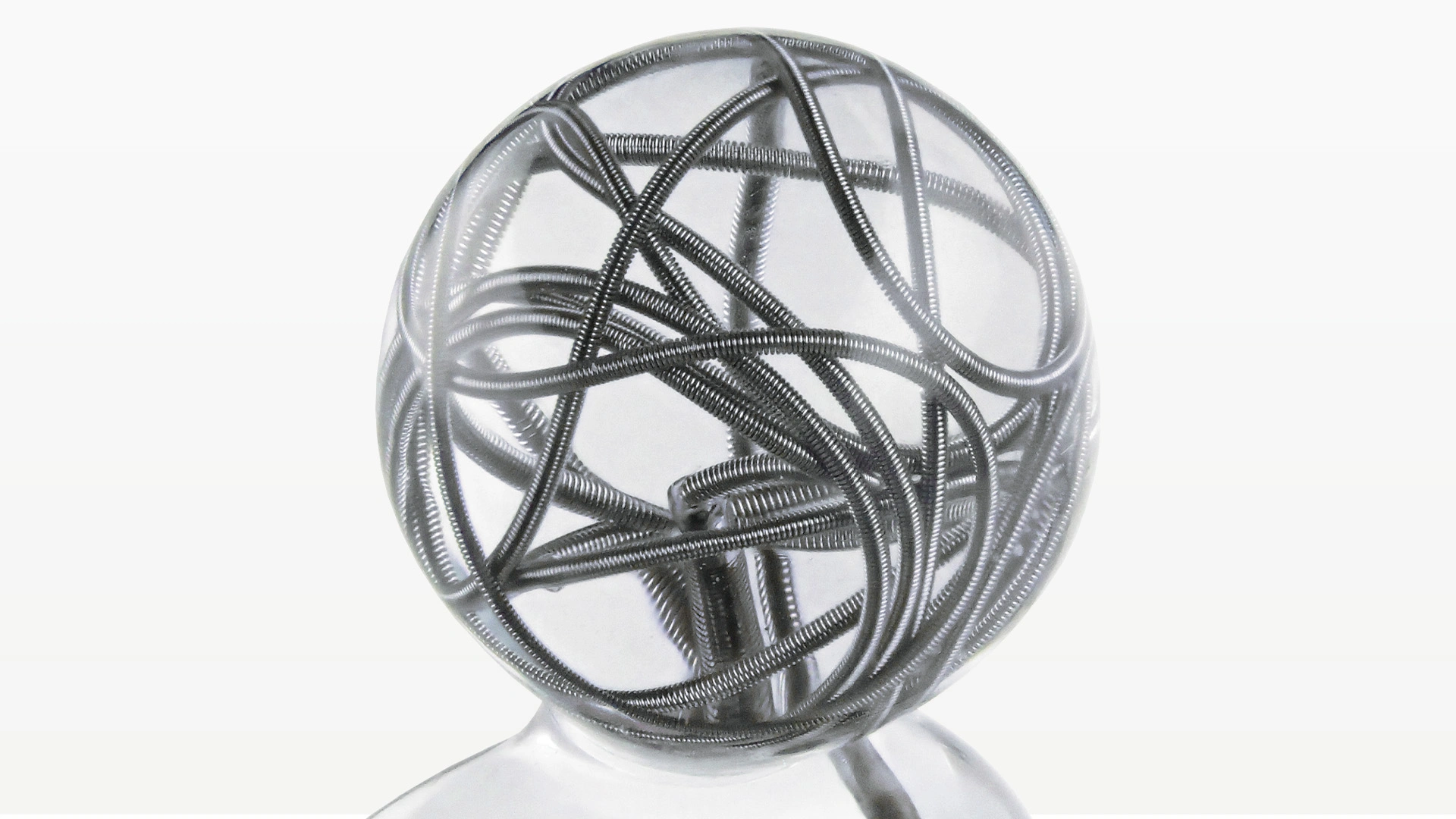

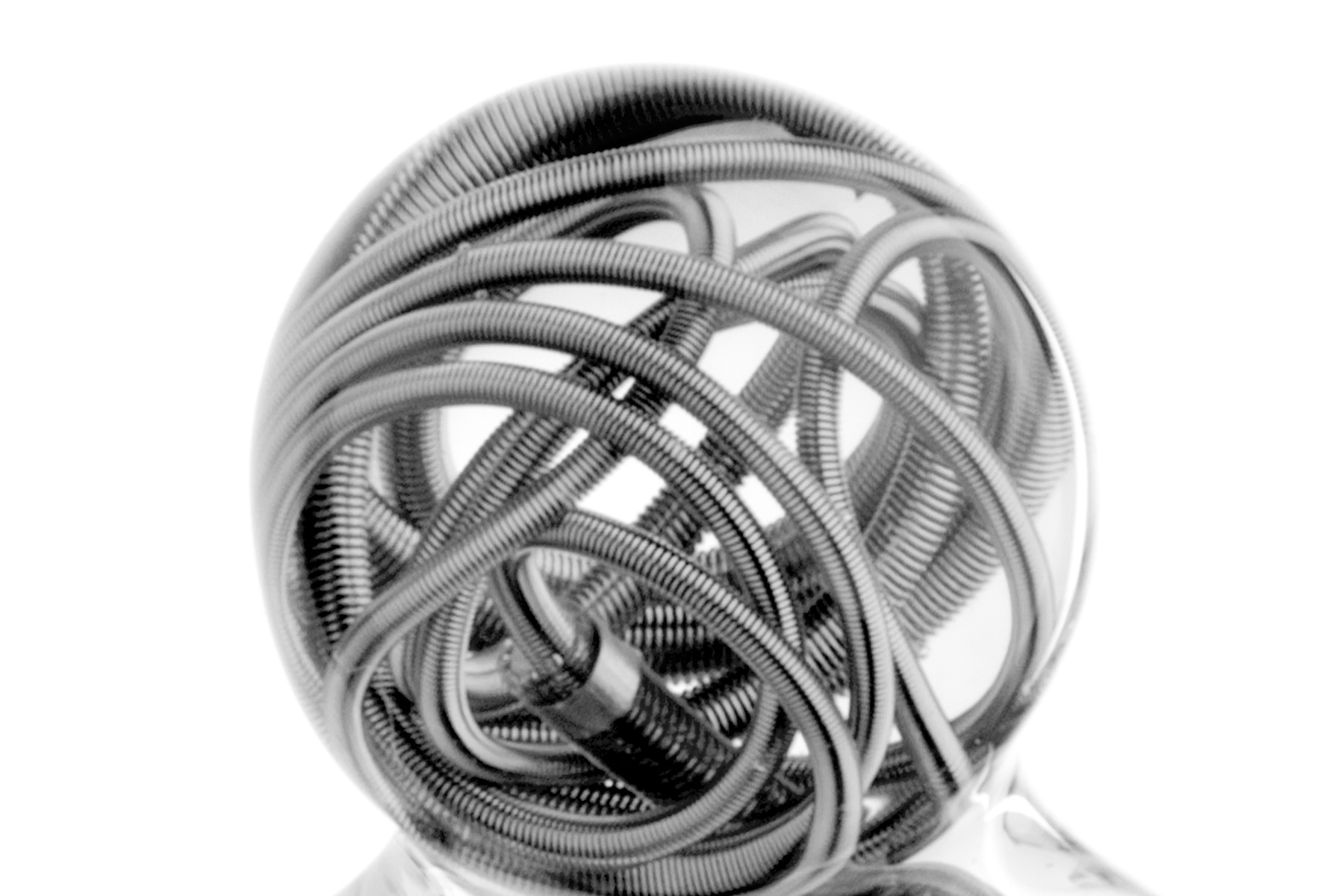

Framing with PC400
Aneurysm coiling with PC400
Please refer to Penumbra's image license for use of materials
Related Cases
Pre, Post, PC400 Coiling
Pre, Post, PC400 Coiling
Pre, Post, PC400 Coiling
Pre, Post, PC400 Coiling

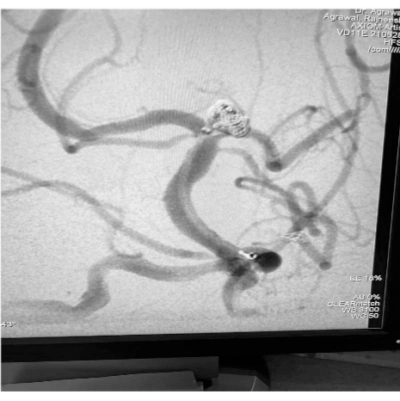

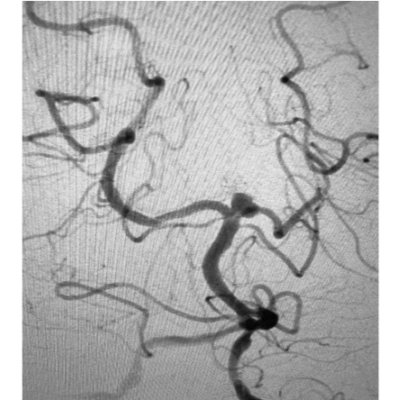

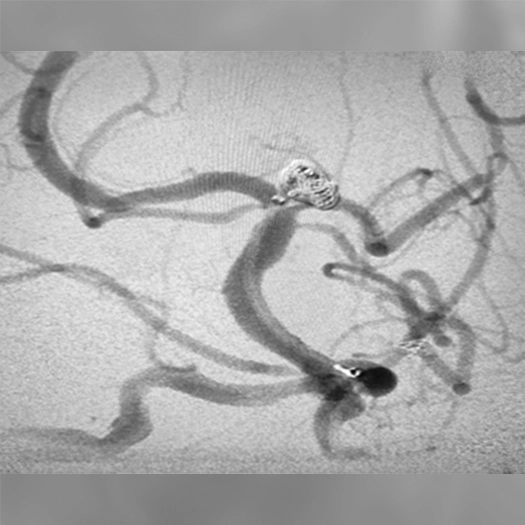

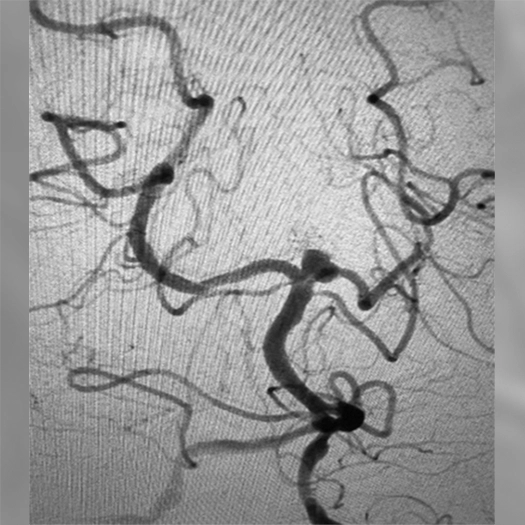

Small Basilar Tip Aneurysm
Total Coils: 2
Final Packing Density: 44.2%
Total Length of PC400 Coils: 6 cm
Equivalent Total Length of .014″ Coils: 12 cm
Dr. Raj Agrawal
University Medical Center, NV
Pre & Post
Pre & Post

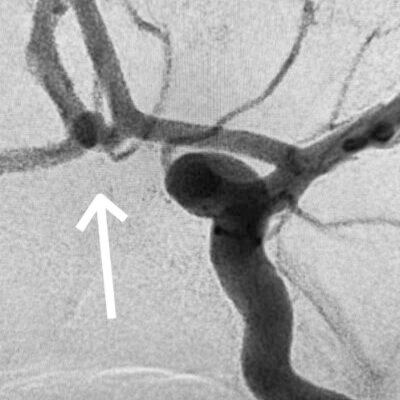

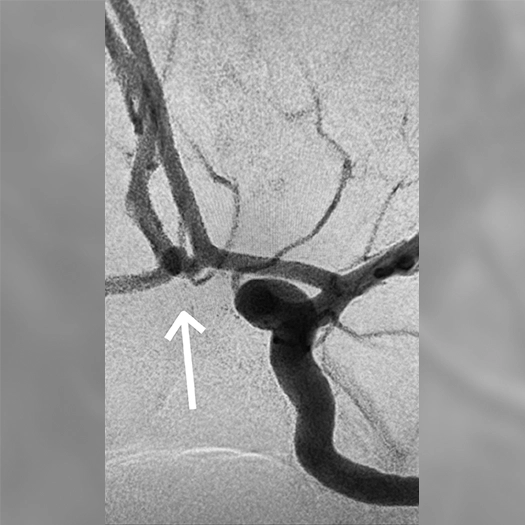

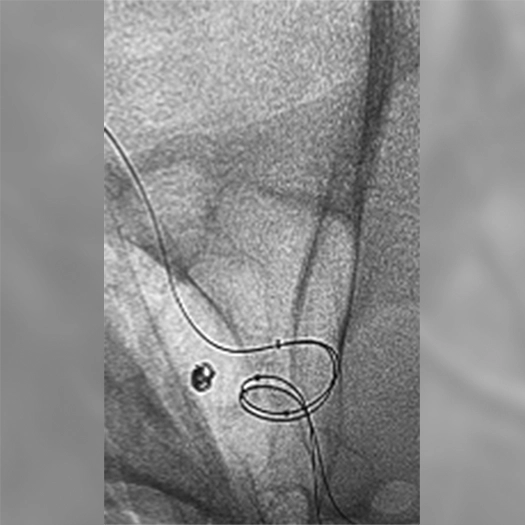

Small Ruptured AcomA Aneurysm
Total Coils: 1
Final Packing Density: 47.1%
Total Length of PC400 Coils: 2 cm
Equivalent Total Length of .014″ Coils: 4 cm
Dr. Don Frei
Swedish Medical Center, CO
Images used with permission and provided for illustrative purposes only. Procedural techniques and decisions based on physician’s medical judgment. Individual results may vary. Consents on file at Penumbra, Inc.
