Penumbra

Pioneer in Aspiration

From the original Penumbra System in 2008 to today’s RED Reperfusion Catheters, Penumbra has driven the management of Large Vessel Occlusions forward in constant technological innovation. Through continuing to support clinical studies, Penumbra is helping to ensure new technologies are available to patients around the world.

DESIGNED TO ENHANCE DELIVERY IN TORTUOSITY

The Difference in Daily Practice​

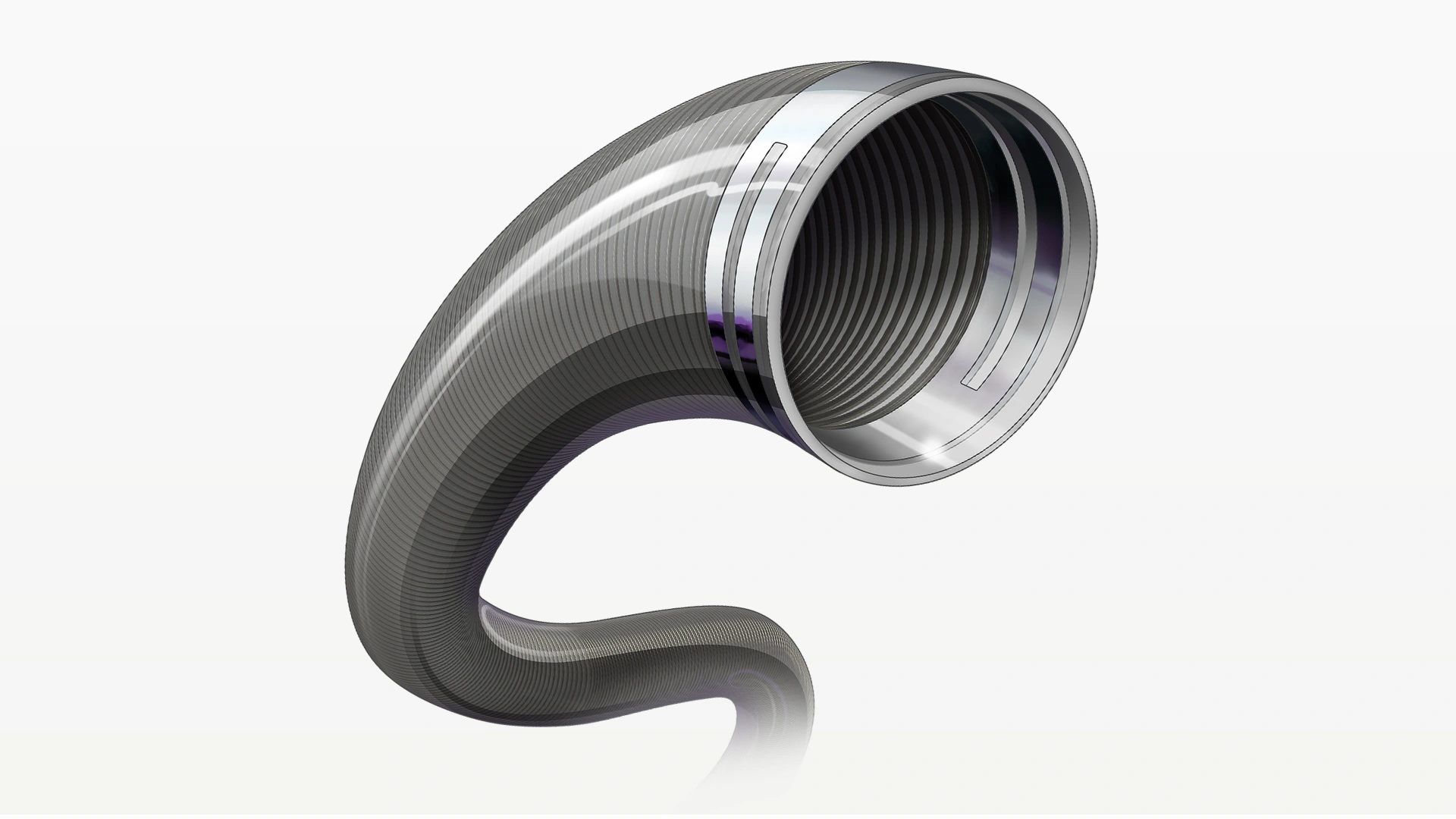

Close up illustration of RED 62 Close up illustration of RED 62

RED 62 Reperfusion Catheter

  • 1.57 mm (.062″) Lumen: Delivers powerful aspiration
  • 1.93 mm (.076″) Outer Diameter: Low profile for easy access
  • Atraumatic Design: Engineered to effortlessly navigate tortuous anatomy
  • 138 cm Length: To reach target vessel
  • 11 material transitions: Optimised for performance in complex distal anatomy

RED 68 Reperfusion Catheter

  • 1.73 mm (.068″) Lumen: Delivers powerful aspiration
  • 2.13 mm (.084″) Outer Diameter: Atraumatic tip design for improved navigation
  • REDglide Coating: Enhanced distal hydrophilic coating for smooth trackability
  • 132 cm Length: To reach target vessel
  • 16 material transitions: Optimised for performance in challenging anatomy

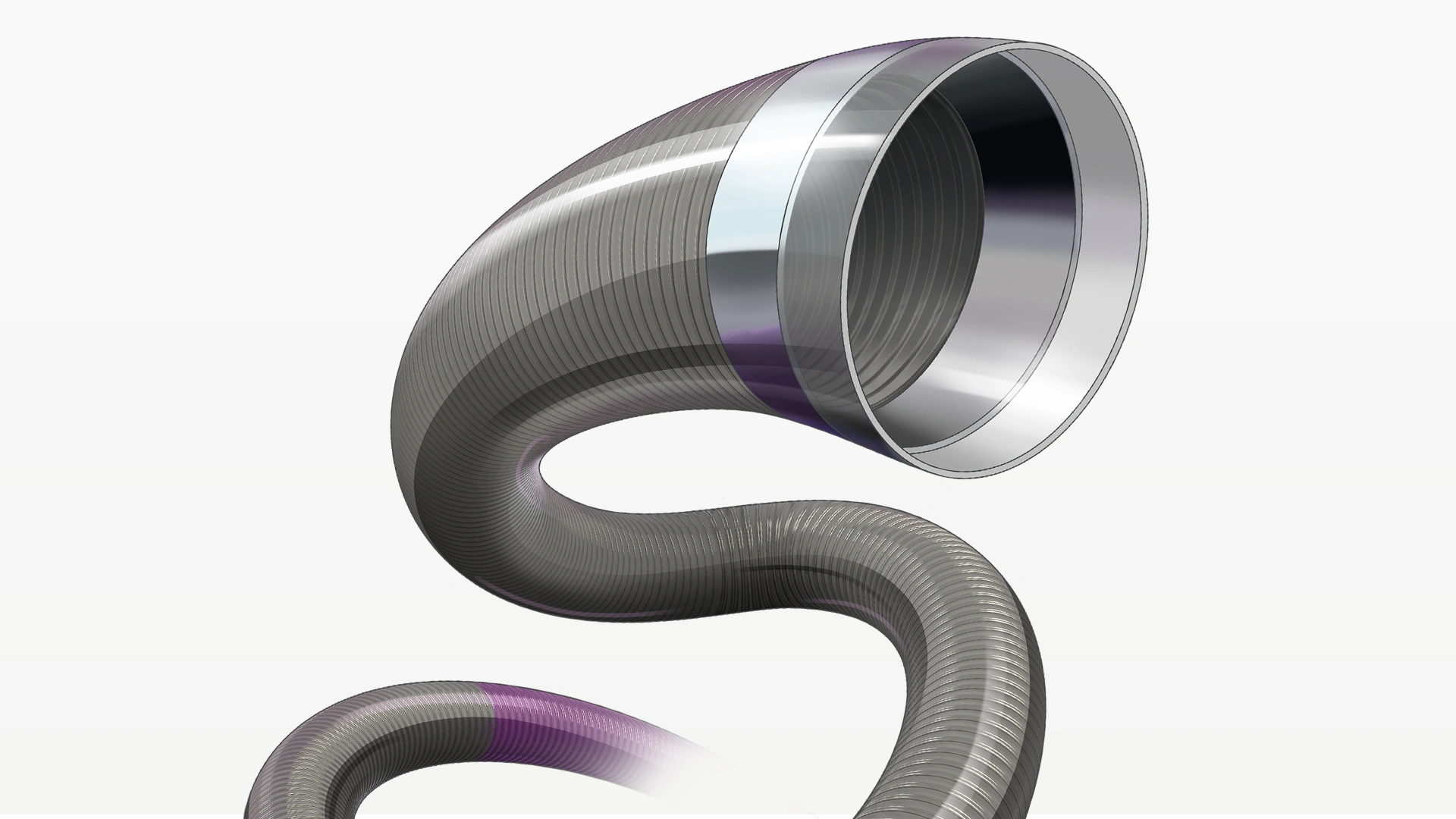

Close up illustration of RED 68 Close up illustration of RED 68

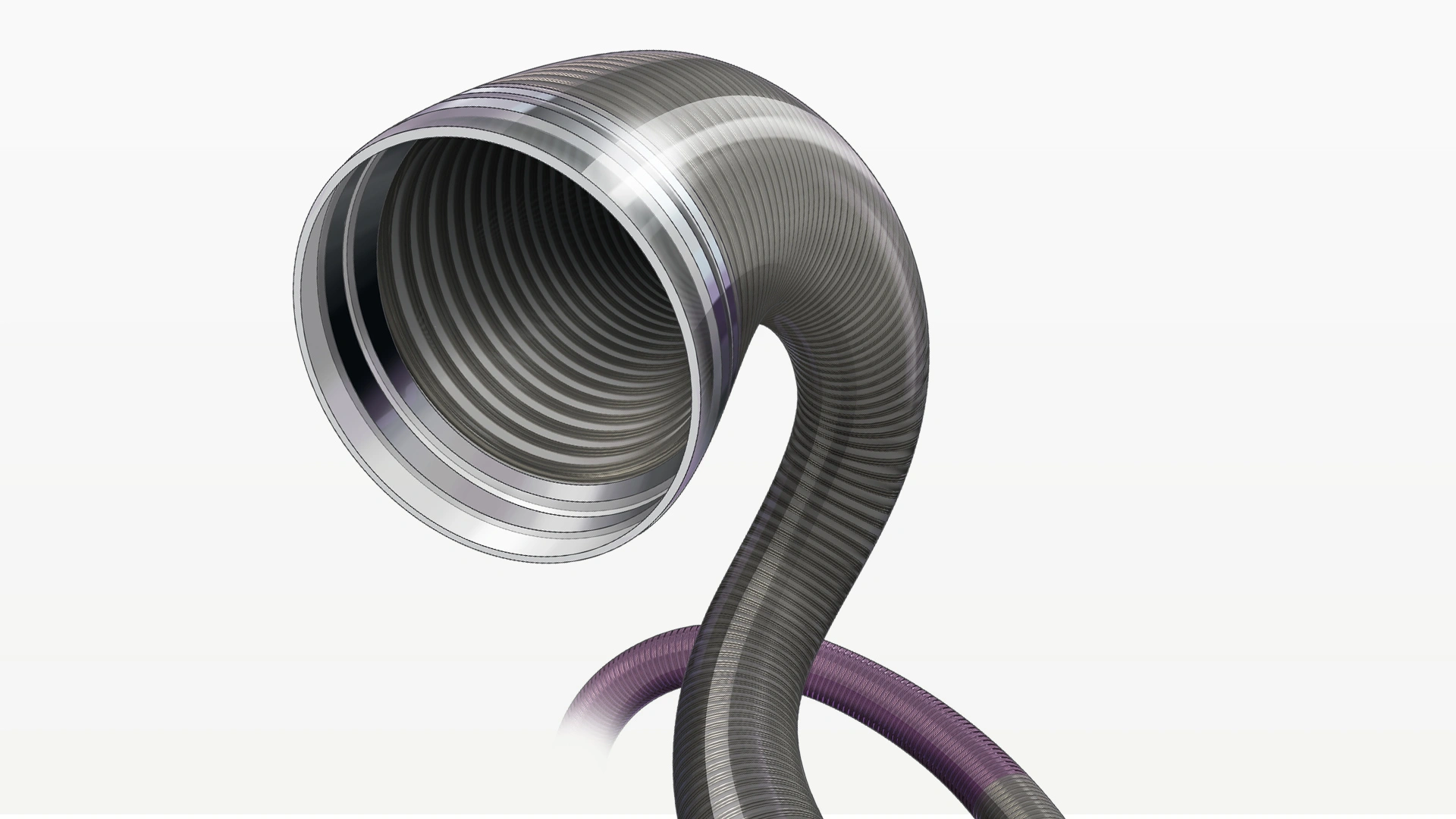

Close up illustration of RED 72 Close up illustration of RED 72

RED 72 Reperfusion Catheter

  • 1.83 mm (.072″) Lumen: Delivers highest TRFa
  • 2.16 mm (.085″) Outer Diameter: Articulating marker band designed to improve tip softness
  • REDglide Coating: Enhanced distal hydrophilic coating for smooth trackability
  • 132 cm Length: To reach target vessel
  • 20 material transitions: Optimised for performance in challenging anatomy

a. As compared to AXS Vecta™ 71 and Stryker® (Medela), React™ 71 and Riptide™, AXS Vecta 74 and Stryker (Medela). Thrombus Removal Force (TRF) = (Catheter Tip Area) × (Vacuum). Sources: company website, marketing literature, IFU, and data on file.
