Innovation: Clot Detection Mechanism Makes for Intelligent Aspiration

Newest Generation of Indigo® Aspiration System Primed to Treat Pulmonary Embolism: JACC-CI Publishes EXTRACT-PE Data



The latest round of excitement for Penumbra, Inc.’s Indigo® Aspiration System — first sparked in early 2020 with the announcement of a new pulmonary embolism (PE) indication — continues to generate interest due to the new PE indication for Lightning™12 and the recent publication of EXTRACT-PE data in the Journal of the American College of Cardiology: Cardiovascular Interventions.

EXTRACT-PE, the first prospective trial of the Indigo System, successfully met its primary endpoints, demonstrating the safety and efficacy of the Indigo System for aspiration mechanical thrombectomy in patients with acute pulmonary embolism. Results showed improvement in right ventricular (RV) function. Additionally, the study data showed low rates of mortality and major bleeding, no cardiac injury, and median procedure times of 37 minutes. The paper, Indigo Aspiration System for the Treatment of Pulmonary Embolism: Results of the EXTRACT-PE Trial,1 was published online in January 2021. Trial results were initially presented at the Vascular InterVentional Advances (VIVA) Annual Meeting in 2019.



Pulmonary Embolism

Researchers have noted that many patients who have died from COVID-19 — the deadly disease caused by SARS-CoV-2 — had formed blood clots throughout their bodies, including in their smallest blood vessels. This unusual clotting, one of many life-threatening effects of the disease, has caused multiple health complications, from organ damage to heart attack, stroke, and pulmonary embolism.2 An increasing concern in COVID-19 patients, PE occurs when blood clots get caught in the arteries of the lungs. Blood clots in the lungs can block the lungs from absorbing oxygen, causing strain on the heart and other organs. According to the American Heart Association, PE affects roughly 340,000 Americans per year.

The formation of a blood clot in an artery or vein is called thrombosis, an often-preventable cause of conditions such as deep vein thrombosis (DVT) and acute ischemic stroke, amongst others. DVT is a blood clot that partially or completely blocks blood flow through a vein deep in the body, particularly the lower leg, thigh, or pelvis. DVT puts people at higher risk of PE because a piece of clot can break free from its original location, travel through the bloodstream, and block blood flow to the lungs.4



The EXTRACT-PE Trial

The EXTRACT-PE Trial was a prospective, single-arm, multicenter trial under an Investigational Device Exemption (IDE) from the U.S. Food and Drug Administration (FDA) that evaluated the safety and efficacy of the Indigo Aspiration System (CAT8) in the treatment of acute pulmonary embolism. The study enrolled 119 participants across 22 U.S. study centers.

The primary efficacy endpoint was met with a mean reduction in (RV)/left ventricular (LV) ratio of 0.43, corresponding to a 27.3% reduction, at 48 hours after intervention. The primary safety endpoint was reached with a low major adverse event composite rate of 1.7% within 48 hours. The major adverse event composite included device-related death, major bleeding, and device-related serious adverse events as adjudicated by the clinical events committee. Additional data reported included median time of Indigo System usage (37 minutes) and median ICU stay (one day). No intraprocedural thrombolytic drugs were used in 98.3% of patients. The authors stated, “The median Indigo device introduction to removal time was 37.0 min, which is the fastest published time in prospective mechanical thrombectomy studies for acute PE.”



Central Illustration Primary Efficacy and Safety Endpoint Results of the EXTRACT-PE Trial

Central Illustration

CI = confidence interval; LV = left ventricle; N/A = not applicable; RV = right ventricle.
Indigo Aspiration System for Treatment of Pulmonary Embolism, DOI: (10.1016/j.jcin.2020.09.053)



In his editorial, titled Mechanical Thrombectomy in Pulmonary Embolism: Ready for Prime Time?5 and published in the same journal issue, Kush R Desai, MD, writes that one notable difference between the EXTRACT-PE and FLARE trials “was the device-specific treatment time, which was faster in the EXTRACT trial (median 37 min) than in the FLARE trial (approximate mean 57 min). He writes that EXTRACT-PE trial results “are an important addition to the growing body of evidence on endovascular mechanical thrombectomy for the treatment of PE in select patients.”

Victor F. Tapson, MD, pulmonary critical care specialist at Cedars-Sinai Medical Center in Los Angeles and EXTRACT-PE Steering Committee member, noted the data’s clinical value upon initial presentation. “From a pulmonologist’s perspective, the results of the EXTRACT-PE trial are another important dataset that help broaden the mechanical treatment options for patients with pulmonary embolism.” He went on to say that “The safety profile of the Indigo System and the low rate of bleeding events, combined with the significant reduction in RV/LV ratio seen in the EXTRACT-PE trial, can positively impact the emerging field of acute pulmonary embolism intervention.”



About the Indigo Aspiration System

Penumbra’s Indigo Aspiration System, launched in 2014, can be used to remove emboli and thrombi from vessels of the peripheral arterial and venous systems, and for treatment of pulmonary embolism. A minimally-invasive device, Indigo helps to enables the restoration of blood flow in such cases as acute limb ischemia and venous thrombus. The Indigo System utilizes the Penumbra ENGINE® aspiration source capable of delivering nearly pure, continuous vacuum (-29 inHg or 98.2 kPa)b to Penumbra catheters, enabling thrombus removal in vessels of various sizes. The Indigo System can be used as a first-line approach or rescue therapy for arterial and venous thrombotic events.

Lightning Intelligent Aspiration

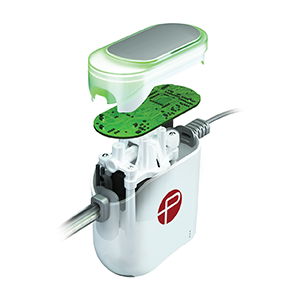

The Indigo System with Lightning is an intelligent aspiration system powered by Penumbra ENGINE and was recently introduced in July 2020. Lightning Aspiration Tubing has dual pressure sensors for real-time blood flow monitoring. The built-in microprocessor features a proprietary thrombus removal algorithm that automatically controls a valve in the tubing to provide continuous or intermittent aspiration. This unique mechanism of action helps optimize thrombus removal procedures by differentiating between thrombus and blood. The system is designed to aspirate continuously when in thrombus and intermittently in patent flow. With Lightning, the physician only needs to place the catheter at the clot and turn on aspiration to begin thrombus extraction. When the Indigo aspiration catheter is in patent flow, Lightning is designed to automatically register a change in pressure and minimizes flow with intermittent aspiration.

Throughout each case, Lightning provides procedural feedback via audiovisual cues. Lightning’s thrombus removal algorithm is designed to initiate automatic valve clicking when it senses patent flow. With automatic valve control, Lightning may help reduce blood loss and allow the physician to focus on optimizing thrombus removal procedures.



Clot Detection

Newest Generation of Indigo Aspiration System

Indigo System Lightning 12

Launched in July 2020, the Indigo System Lightning 12 is the company’s newest generation aspiration system for peripheral thrombectomy. Lightning 12 combines the Indigo System CAT12 Aspiration Catheter with Lightning Intelligent Aspiration, enabling physicians to focus on optimizing thrombus removal using the system’s unique clot detection mechanism. CAT12 is a large-lumen aspiration catheter that incorporates novel lasercut hypotube-based catheter engineering to provide advanced deliverability and torqueability within the body. This combination of intelligent aspiration and large-lumen catheter engineering makes Lightning 12 Penumbra’s most advanced clot removal technology for the treatment of pulmonary embolism.

Innovation: Clot Detection Mechanism Makes for Intelligent Aspiration

FDA clearance of the PE treatment indication for Lightning 12 and Separator™12 was announced in November 2020.

Innovation: Clot Detection Mechanism Makes for Intelligent Aspiration

In addition to Lightning 12, the Indigo System also includes Lightning 8, which combines the Indigo System CAT 8 Aspiration Catheter with Lightning Intelligent Aspiration for the removal of fresh, soft emboli and thrombi from the peripheral arterial and venous systems, and for the treatment of pulmonary embolism. Lightning 12 and Lightning 8 expand the already broad offering of CAT8, CATD, CAT6, CAT5, and CAT3 and are paired with Penumbra ENGINE, the company’s proprietary continuous, mechanical vacuum aspiration pump.

Innovation: Clot Detection Mechanism Makes for Intelligent Aspiration
